Pin Panic Door Lock Emergency Exit System

Pin Panic Door Lock Emergency Exit System

  • DGPS uPVC
  • PPL PD 1709
  • In Stock
  • £550.62

  • Exc. VAT: £458.85

Available Options

- OR -

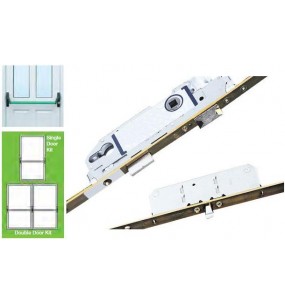

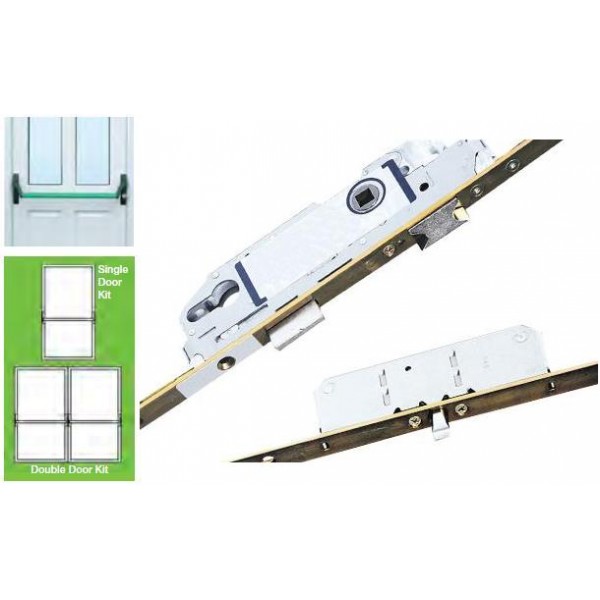

Pin Panic Door Lock Emergency Exit System

Also works with the following system (CLICK HERE)

Features:

Combines enhanced security with emergency exit technology for both single and double doors

Multipoint locking system

2 pins and deadbolt for security

Pins throw 20mm

Reversible latch to suit bothe left and right hung doors

Anti-saw deadbolt

Panic Bar

Tested and certified to EN 1125, European standard for Panic Exit Devices

BS EN 1125 classification: 37601322A

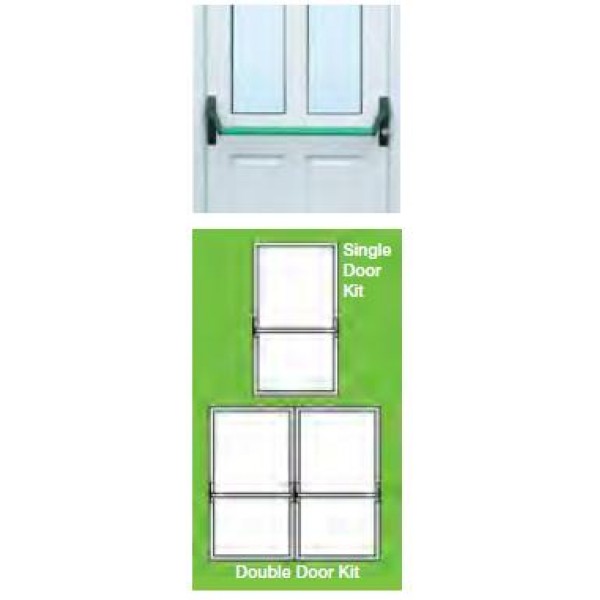

Kits available for both single and double doors

Suitable for use on uPVC, Timber & Alumimunm doors

Internal operation via panic bar

Panic bar finished in exit green

External access kit also available

For all applications door will always open from inside to allow emergency egress

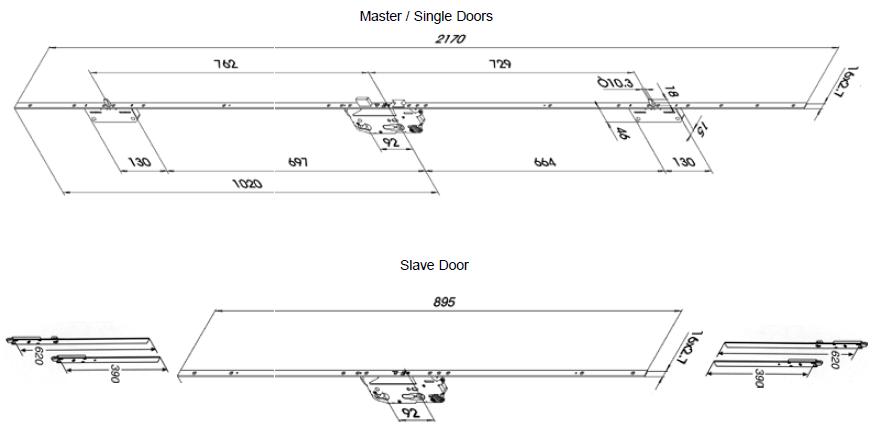

Specification:

Single Doors Rebate Size
Minimum Width 700mm
Maximum Height 2400mm

Double Doors Rebate Size
Minimum Width 1600mm
Maximum Height 2400mm

Single Door/Primary Leaf Specification

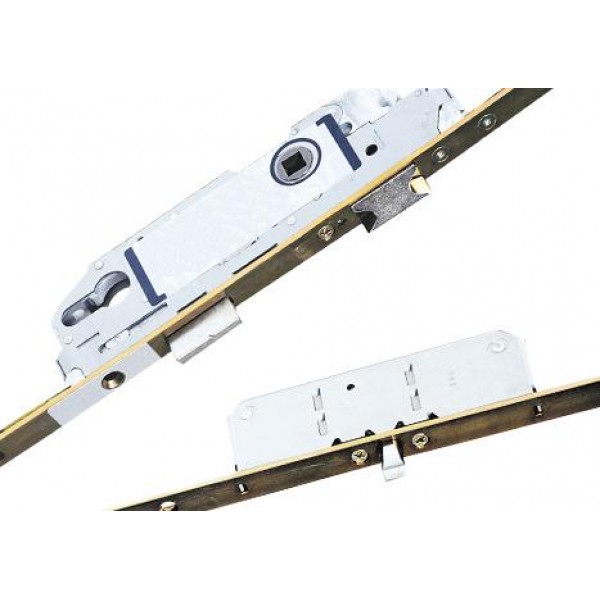

35mm backset multipoint lock featuring 2 pins with 20mm throw, reversible latch and anti-saw deadbolt

Secondary Door Specification
35mm backset secondary door with shootbolts top and bottom
