Evolution Door Hinge for enhanced security
- Mila-DGPS
- EVO1419PLUS
- In Stock
-
£23.72
- Exc. VAT: £19.77
Available Options

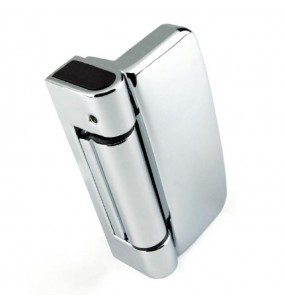

Evolution Door Hinge for enhanced security
Enhanced security door hinge. Robust design with subtle sight-lines, available in 8 finishes. Minimum quantity order is 12 as no longer sold in singles.
Finishes
- Polished Gold
- Polished Chrome
- Smooth Satin Chrome
- Smokey Chrome
- Black White
- Light Oak
- Brown
Dimensions - Suits rebate sizes:

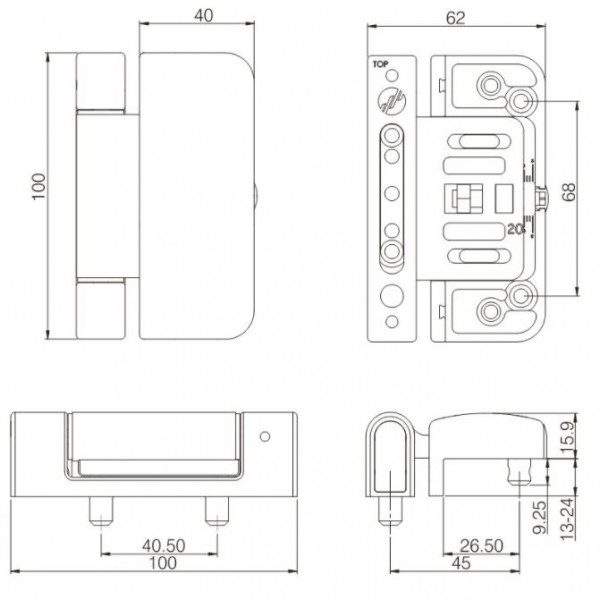

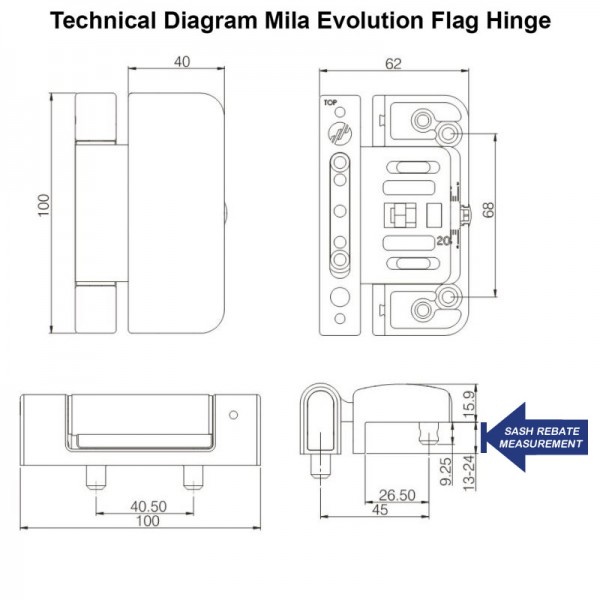

(See Technician Diagram Image for Rebate Measurement)
- 14mm & 19mm (NOT AVAILABLE IN SMOOTH SATIN CHROME)
- 15mm & 18mm
- 16mm & 17mm
- 17mm & 24mm (NOT AVAILABLE IN SMOOTH SATIN CHROME)
- 18mm & 23mm
- 19mm & 22mm
- 20mm & 21mm
Features
- 3 dimensional adjustment - lateral (4/- 4mm),vertical (+4mm) & compression (+/-lmm) for easy installation
- Adjustment achieved with an Allen key without the need to dismount the door leaf
- 3 main components including frame part, sash part & sash cover
- Infill pieces available for use on ovolo & chamfered profiles
- Steel hinge pin for added strength, held in place with security grub screw
- Weather resistant - tested to 480 hours salt spray
- Tested to the operational performance and enhanced security requirements of PAS 024
- Meets the Police Preferred Specification requirements of Secured by Design
- Cycle tested to 10000 cycles, more than twice the industry requirement
Tested to BS EN 1935 - the standard which specifies requirements for single-axis hinges for windows and doors opening in one direction only, whose rotation axis is no more than 30 mm from the face of the sash or door.
