Siegenia TITAN AF Face Fixed Tilt & Turn Gearing
- SI-Siegenia
- SI FF 1709
- In Stock
-
£150.00
- Exc. VAT: £125.00
Available Options

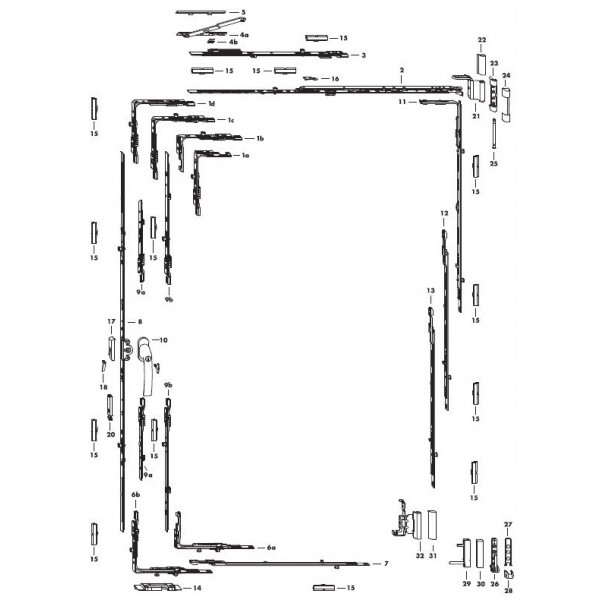

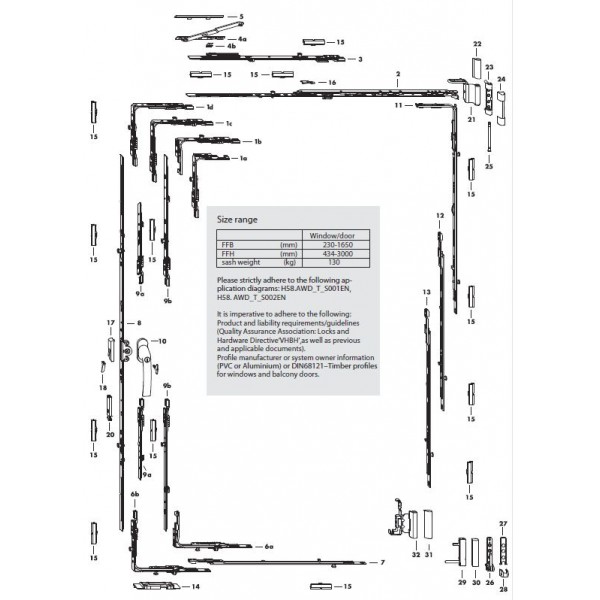

Siegenia TITAN AF Face Fixed Tilt & Turn Gearing Full Kit
***NEW SYSTEM***
As part of the same product family as the TITAN axxent 24+ concealed solution, the AF Face Fix variant is also suitable for PVCu, aluminium, timber-aluminium and timber profile systems. The TITAN range is renowned for being flexible to suit most manufacturing processes while providing the standard reliable functionality required from a tilt and turn system.
Assembly is quick and easy due to the innovative click-on coupling feature, requiring only one screw per coupling point. Optimised screw guide claws, precision coupling teeth and joint chamfers mean that connecting components is secure and straightforward. A high degree of pre-assembly also helps to speed up fabrication time.
We have also created a custom TILT AND TURN GEARING ORDER FORM so you can fill this is an email it to us for advice (email address on the form).
Technical Information:
- Espagnolette Backset: 7 or 15mm
- Hinge options: 12/20/13 - 12/18/9 - 12/20/9
- Faceplate width: 16mm eurogroove for PVCu or aluminium
- 24mm rebate width for timber or timber-aluminium
- Sash rebate width: 230-1650mm
- Sash rebate height: 260-3000mm
- Max sash weight: 130/150k

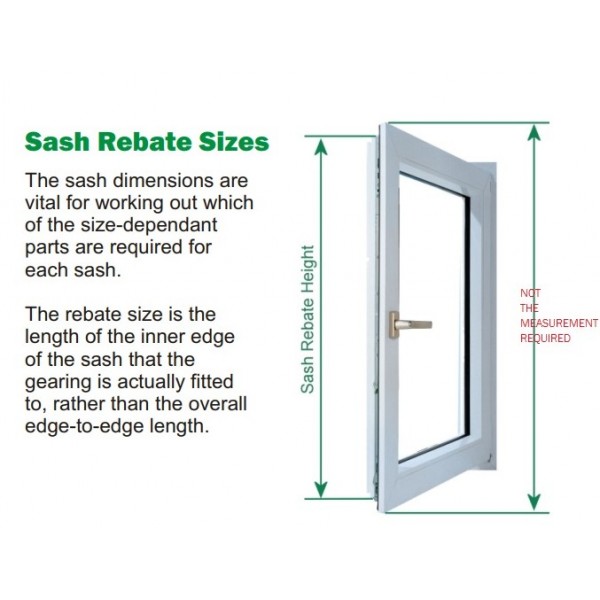

When ordering this Full Kit, please confirm that the overall Width and Height provided is of the SASH size (the opening part of the window) as image below (Refer to all images for guidance).
PLEASE NOTE: Individual parts of this Siegenia TITAN AF Face Fixed Tilt & Turn Gearing (Full Kit) can also be purchased.
£9.90 Exc. VAT: £8.25
£9.35 Exc. VAT: £7.79
£10.51 Exc. VAT: £8.76
£150.00 Exc. VAT: £125.00
£23.02 Exc. VAT: £19.18
£6.60 Exc. VAT: £5.50
£15.00 Exc. VAT: £12.50
£14.11 Exc. VAT: £11.76
Disclaimer
All images are for reference purposes only and can show multiple dimensions of a single product so you can see the product from different angles. This does not usually mean the amount shown in the image is the amount you purchase. Where multiple items are shown please check the description as only one is usually supplied unless otherwise stated.
