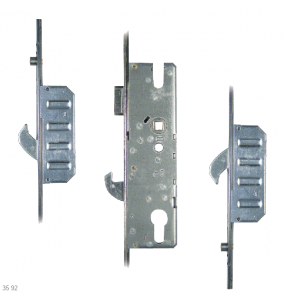

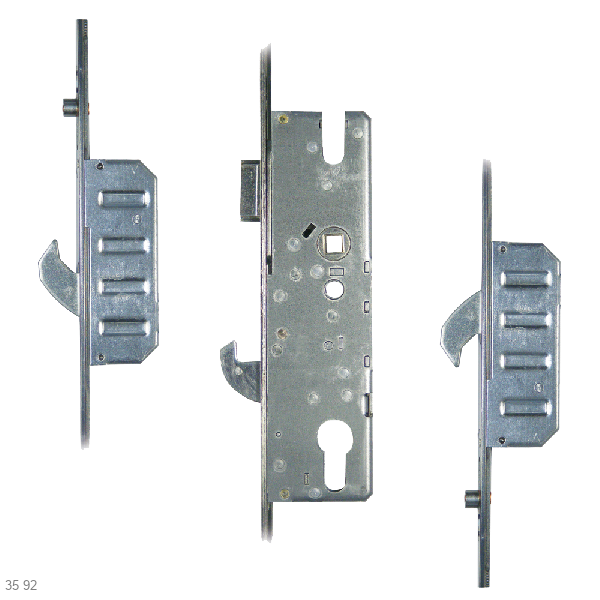

WINKHAUS Scorpion Lever Operated Latch & Hookbolt - 2 Hook 2 Roller

A Winkhaus Scorpion split spindle lever operated latch and hookbolt multipoint with 2 hooks and 2 rollers. It has a 16mm faceplate and 92mm centres.

WINKHAUS Scorpion Lever Operated Latch & Hookbolt - 2 Hook 2 Roller

Features

• Euro profile lock case
• Latch & hookbolt
• Split spindle
• 16mm Faceplate

Categories

• Architectural Hardware
• Door
• Full Units
• Winkhaus
• Multi Point Locks

General Latch Reversal Instructions:

1. Locate the Latch Mechanism: Push the latch inward to expose the screw on the back of the lock case.
2. Remove the Screw: Use a screwdriver to carefully undo and remove the screw that holds the latch in place.
3. Reverse the Latch: Once the screw is removed, pull out the latch, rotate it to the opposite orientation, and reinsert it into the lock case.
4. Secure the Latch: Replace and tighten the screw to secure the latch in its new position.
5. Test before refitting: Make sure to test the latch afterward to confirm it operates correctly.

Our WINKHAUS Scorpion Lever Operated Latch & Hookbolt - 2 Hook 2 Roller from Winkhaus is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

* Information above is accurate at the time of entry and may be subject to change at any time.
