Trident Espag - Hook & Cam Window Locking System
- SI-Siegenia
- SI TRI ESP 1709
- In Stock
-
£34.20
- Exc. VAT: £28.50
Available Options

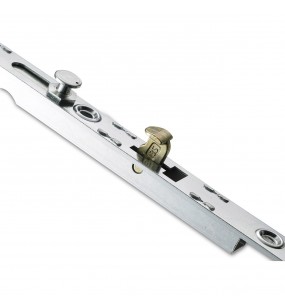

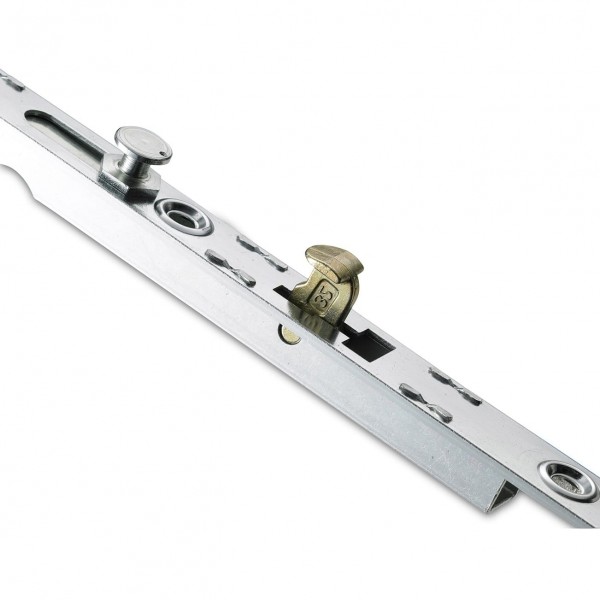

A secure espagnolette window lock designed as a quick and easy to install solution for all types of casement windows. Designed to comply with PAS24:2016 security requirements the lock includes a face fixed locking bar with unique hook security technology and 8mm adjustable mushroom cams for excellent weathering performance.
The robust and durable design features an in line gearbox available in 20mm and 22mm backset options and in 6 bar lengths suitable for sash rebate sizes from 330mm to 1400mm. Bar lengths start at 300mm and go up to 1250mm in length.
Smooth and positive locking used in conjunction with all espagnolette window handles with a wide range of profile keeps to suit.
Specifications
- 2 hooks for enhanced security
- 2 or 4 mushroom cams enhance sealing -
- 8mm Cams (9.5mm cams sold separately - contact us)
- Hook & cam combination provides strong anti-separation device
- Simultaneous hook & cam travel
- Option of 20mm & 22mm Backset
- Mild steel faceplate
- Size range 300mm min to 1250mm max
- No cropping speeds fabrication by 30% when compared to shootbolts
- Meets the enhanced security requirements of PAS24: 2016
- Chromium VI free, silver coating provides 700 hours corrosion free resistance
- European design & manufacture
- Smooth reliable operation
Size Chart
| Size (mm) | Size Range (mm) | Hooks | Cams |
| 300 | 330-480 | 0 | 2 |
| 450 | 481-680 | 2 | 2 |
| 650 | 681-880 | 2 | 2 |
| 850 | 881-1080 | 2 | 2 |
| 1050 | 1081-1280 | 2 | 4 |
| 1250 | 1281-1400 | 2 | 4 |
