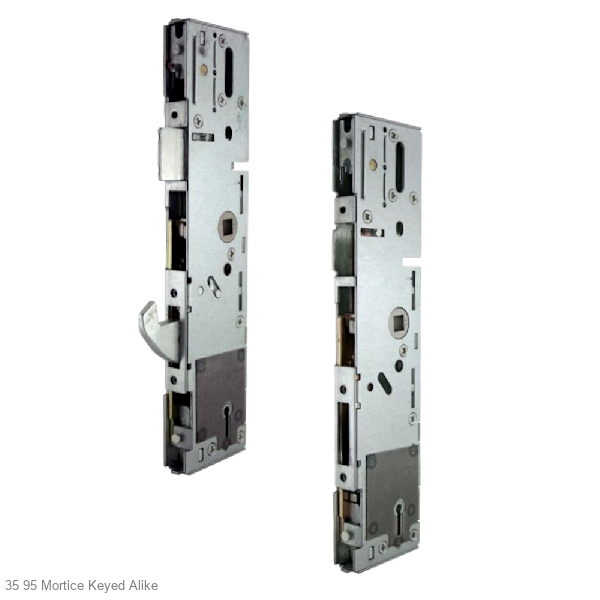

ERA Vectis Lever Operated Slave Unit Split Spindle - Centre Case

This keyed alike ERA Vectis centre case set includes a 35mm backset hookbolt gearbox for the master door and a 35mm backset slave gearbox for the slave door, complete with 3 mortice keys eliminating the need for a euro profile cylinder. No cylinder means the VECTIS PLUS is free from cylinder manipulation, breaking/snapping and plug extraction. The slave unit is designed for use on the passive leaf of a pair of French doors, security shootbolts then secure the lock into frame offering optimum compression at the top and bottom of the door.

The lock also incorporates a split spindle function to allow it to be used in either levers or lever pad handle applications. The gearbox is secured on a 16mm face bar making this lock an ideal choice for UPVC french door applications. The lock meets the requirements of BS EN 1670:2007 Grade 4 (240 hours) for corrosion resistance; and to ensure smooth and consistent performance over time the lock is endurance tested to 50,000 cycles.

ERA Vectis Lever Operated Slave Unit Split Spindle - Centre Case

Features

• Can be used with lever lever or lever pad handles
• Can be suited to the Era Viscount range of mortice locks
• 3 mortice keys supplied
• Suitable for left or right handed doors
• Keyed alike centre case set - 1 x 35mm hookbolt and 1 x slave unit
• Slave unit used to drive shoot bolts

Categories

• Architectural Hardware
• Door
• Centre Case
• Gearbox
• Era

Our ERA Vectis Lever Operated Slave Unit Split Spindle - Centre Case from ERA is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

* Information above is accurate at the time of entry and may be subject to change at any time.
