GU Secury LogIQ A2 Automatic Multipoint Lock - 2 Deadbolts 1770mm x 20mm Radius Faceplate

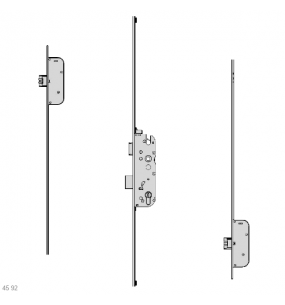

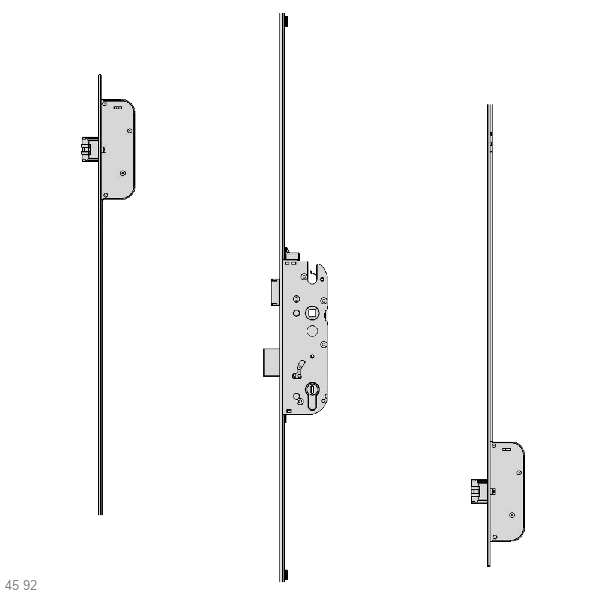

The GU Secury LogIQ A2 is a multipoint locking system built around an automatic locking 20mm latchbolt mechanism that operates as soon as the door is closed, without requiring a manual throw of the bolts. The single spindle latch and deadbolt centre case has 92mm centres, accepts a euro profile cylinder and there are two other locking point deadlocks. In addition, the latch is reversible providing suitability for both left and right‑hand doors.

In normal operation: as the door closes, triggers in the frame actuate the automatic latchbolts, which extend and prevent reversal, thereby drawing the door securely into the frame; a subsequent turn of the key (from the outside) or use of the lever (from the inside) deadlocks the central bolt as required.

This version has a 20mm radius faceplate, is 1770mm long and is prepped ready for the addition of a separately available Secury A-Opener motor, which would allow automated latchbolt retraction via an access control system.

GU Secury LogIQ A2 Automatic Multipoint Lock - 2 Deadbolts 1770mm x 20mm Radius Faceplate

Features

• Radius faceplate 20mm x 1770mm
• Door automatically locks when closed
• Lever Key operation internally
• Key operation externally
• Integral patented hold-back feature
• Reversible centre latch and locking point latches

Categories

• Architectural Hardware
• Electric Locking
• Electric Lock
• GU
• Access Control

Our GU Secury LogIQ A2 Automatic Multipoint Lock - 2 Deadbolts 1770mm x 20mm Radius Faceplate from GU is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

* Information above is accurate at the time of entry and may be subject to change at any time.
