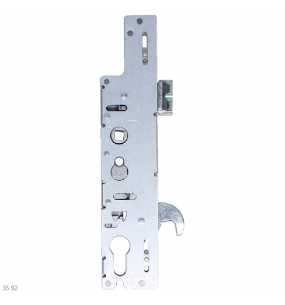

INGENIOUS Single Spindle Gearbox
- Ingenious
- INGEN_0011
- In Stock
-
£25.03
- Exc. VAT: £20.86
Available Options

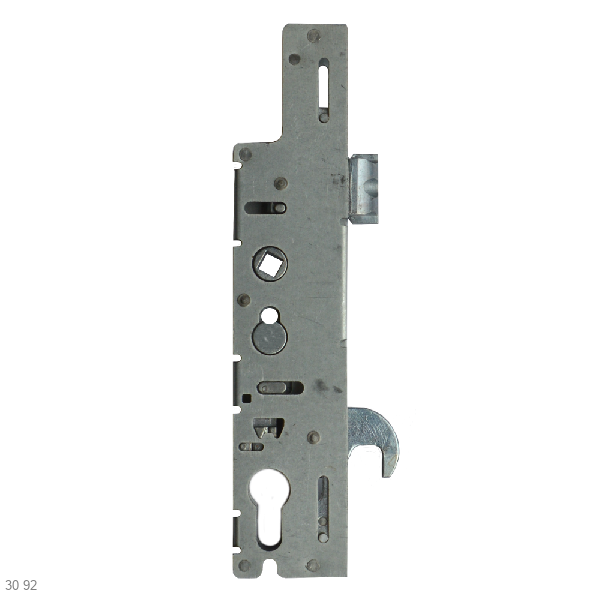

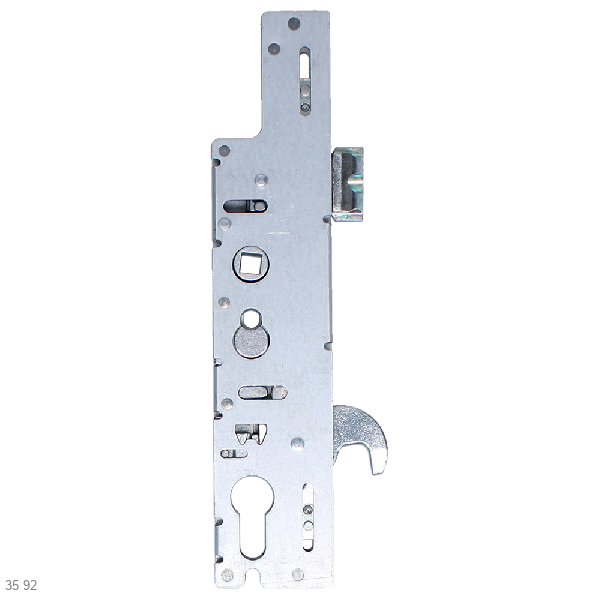

INGEN_0011 The INGENIOUS single spindle multi-point door lock gearbox only has a 30mm or 35mm backset, latch & hookbolt centre case, 92mm centres, 47mm or 57mm case width and the case height is 229mm.
Ingenious multipoint door gearboxes include a handy plastic snib on the faceplate, allowing the latch to be held back for convenience and to avoid accidental lock-outs.
The gearbox has unique slider technology for a long lasting, smooth operation. As the follower is unsprung, we recommend pairing with sprung door furniture for best performance.
Identification
Can be identified by the small plastic snib on the faceplate and the large top corner case cut out, these are similar the Fullex XL cases so please double check before ordering.
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand and refitting the screw.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
INGENIOUS Single Spindle Gearbox
Features
- Reversible latch
- 92mm centres
- Latch & Hookbolt
- Single spindle
Categories
- Architectural Hardware
- Door
- Centre Case
- Gearbox
- Ingenious
Our INGENIOUS Single Spindle Gearbox from Ingenious is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 35mm, 30mm |
| Barcodes | 5056240166582, 5056240166575 |
| Case Depth | 15mm |
| Case Height | 229mm |
| Case Width | 47mm, 42mm |
| Centre Case | Latch & Hookbolt |
| Centres | 92mm |
| Handed | Reversible |
| Mechanism | Euro Cylinder (not included) |
| Pack Quantity | 1 |
| Spindle | Single |
