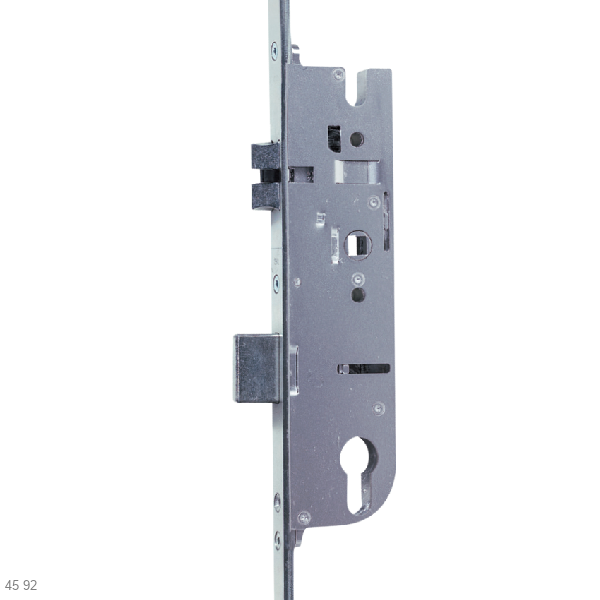

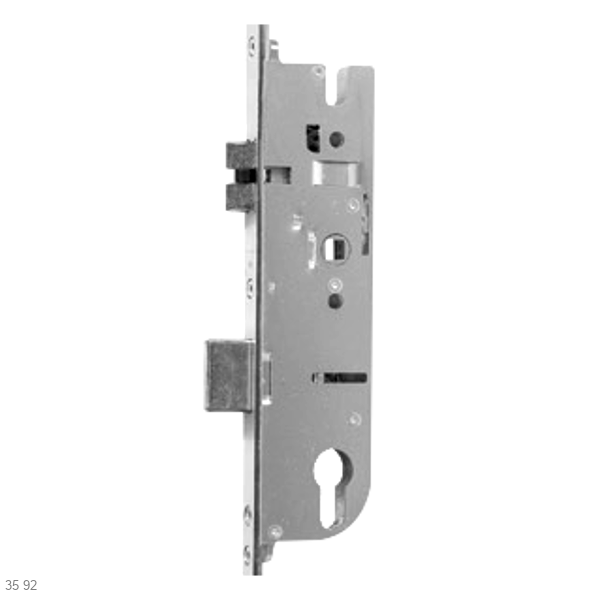

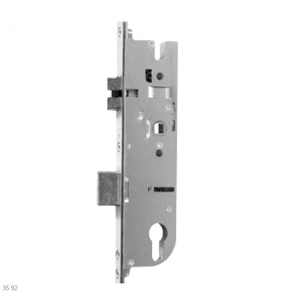

MACO Lever Operated Latch & Deadbolt Single Split Spindle CT-S Gearbox
- Maco
- MACO_0026
- In Stock
- 2.18 kg
-
£47.21
- Exc. VAT: £39.34
Available Options
The MACO Lever Operated Latch & Deadbolt Single Spindle 35/92 CT-S Gearbox has 35mm or 45mm backset, 92mm centres, is single spindle, latch & deadbolt centre case, 200mm case height and has 50mm or 60mm case width.
Ideal for locksmiths and trade professionals, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip.
Handing
The latch can be reversed by pushing up the latch hold cam (located on the side of the lockcase) with a flat bladed screwdriver. Remove the latch, reverse it, and return it to the case. You should hear a click as it engages.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
MACO Lever Operated Latch & Deadbolt Single Split Spindle CT-S Gearbox
Features
- Euro profile lock case
- Simple reversal process
- Latch & deadbolt
- Single function lock for use as a lift lever or split spindle operated door lock
- Can be used with 2 or 3 screw fixing handles
- Maco easy latch reduces noise and force required to shut the door
Categories
- Architectural Hardware
- Door
- Centre Case
- Gearbox
- Maco
Our MACO Lever Operated Latch & Deadbolt Single Split Spindle CT-S Gearbox from Maco is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 35mm, 45mm |
| Barcodes | 5055120761015, 5056240127231 |
| Case Height | 200mm |
| Case Width | 50mm, 60mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Mechanism | Euro Cylinder (not included) |
| Pack Quantity | 1 |
| Spindle | Split |
| Shipping Weight | 2.18 kg |
| Availability: | In Stock |
