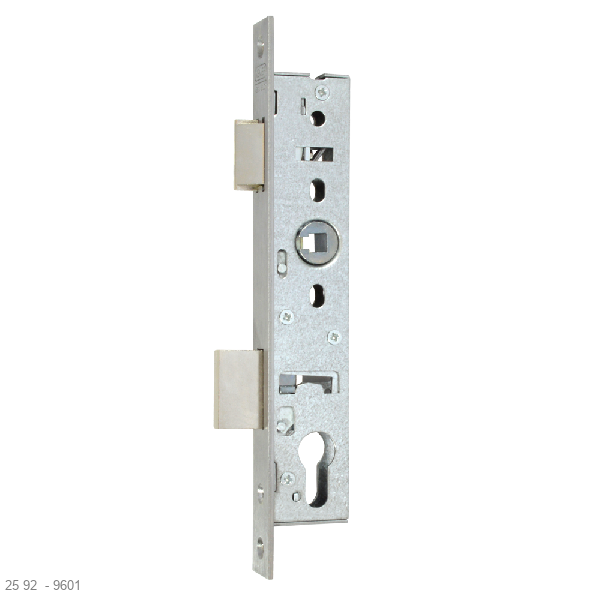

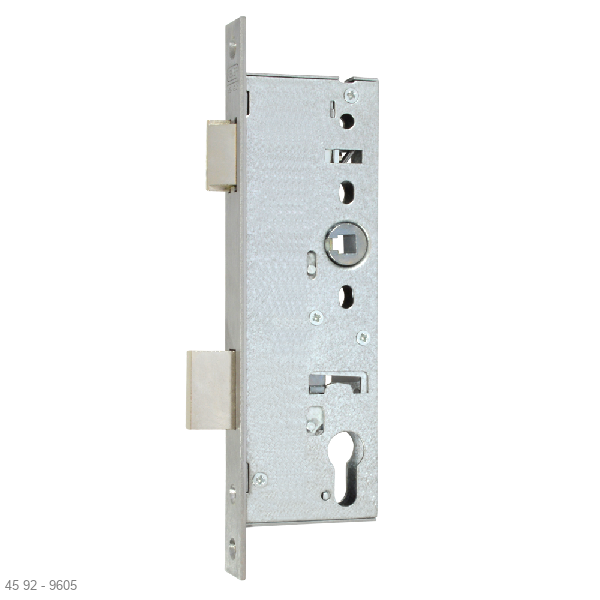

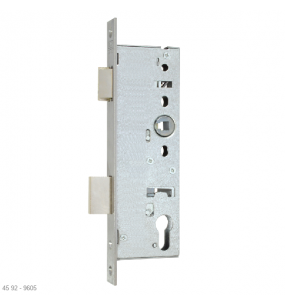

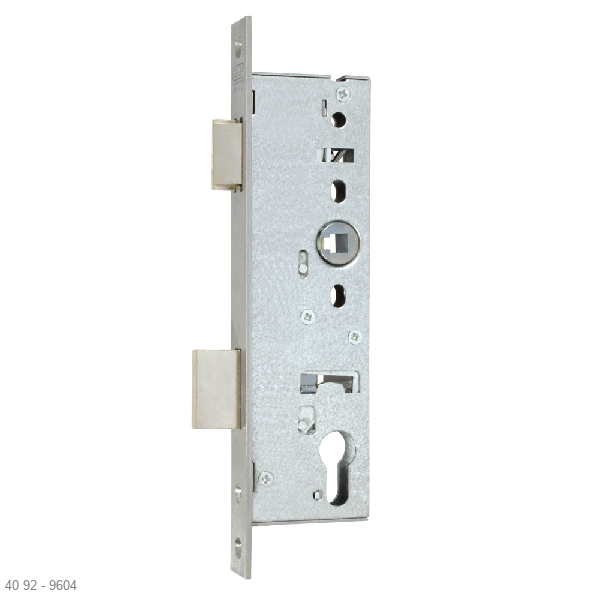

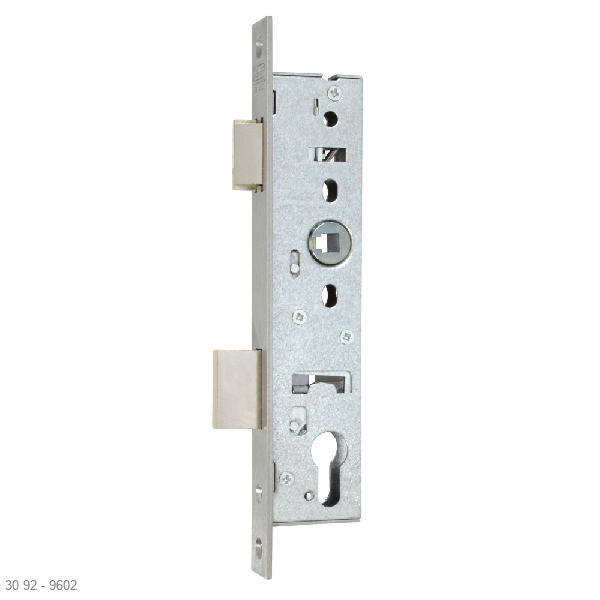

The Nemef 9600 series is a narrow stile sash lock with 92mm centres suitable for internal or entrance doors. It is designed to accept a euro profile cylinder.
NEMEF 9600 Euro Sashcase
Features
- Ideal for aluminium doors
- Euro Profile Lock Case
- Latch & Deadbolt
- Reversible
- Key action on latch bolt
- Single throw dead bolt
Categories
- Architectural Hardware
- Door
- Centre Case
- Gearbox
- Nemef
Our NEMEF 9600 Euro Sashcase from Nemef is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 45mm, 40mm, 35mm, 30mm, 25mm |
| Barcodes | 5055120739342, 5055120739335, 5055120736877, 5055120736860, 5055120736853 |
| Case Depth | 60mm, 55mm, 50mm, 45mm, 40mm |
| Case Finish | Silver |
| Case Height | 198mm |
| Case Width | 24mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 24mm |
| Finish | Satin Stainless Steel |
| Forend Length | 245mm |
| Mechanism | Euro Cylinder |
| Pack Quantity | 1 |
| Product References | L22034, L22033, L21818, L21817, L21816 |
| Spindle | Single |
