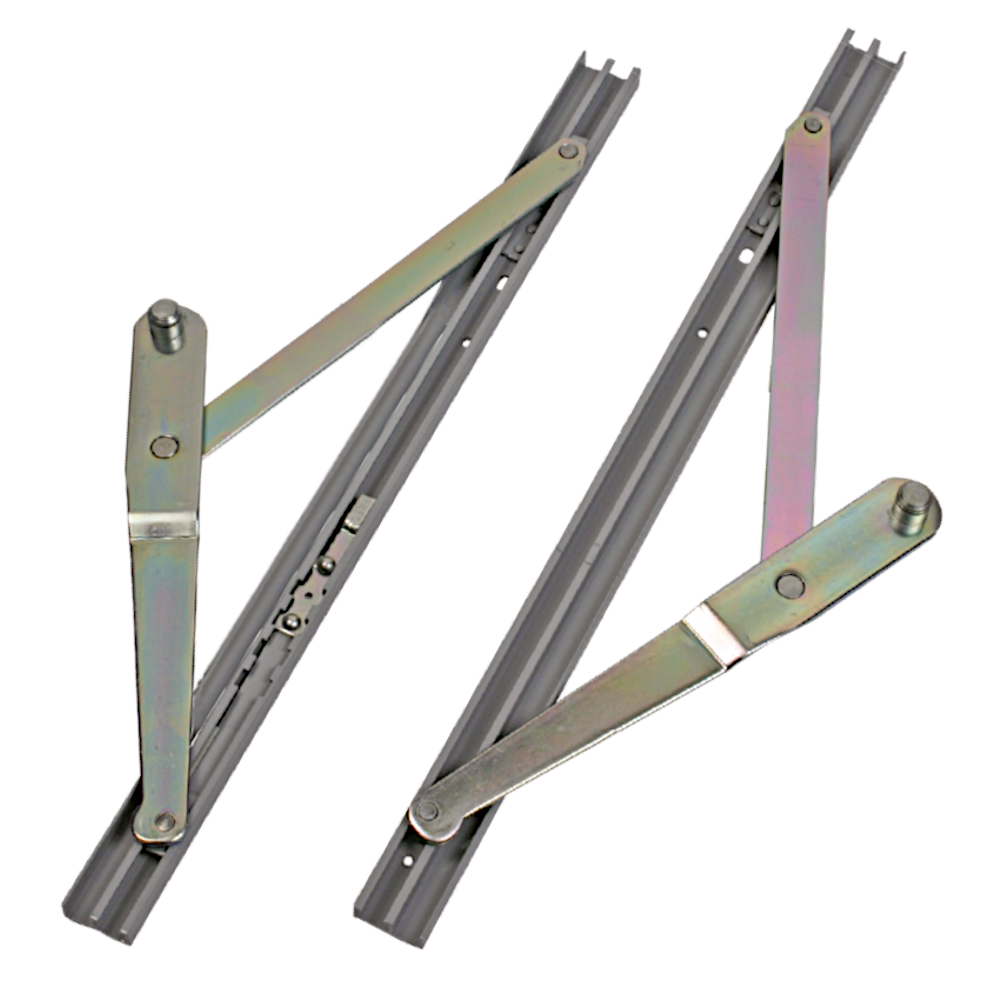

ROTO FRH Uni Top Swing Window Hinge With Reversible Gearing
- Roto
- ROTO_0067
- In Stock
-
£69.86
- Exc. VAT: £58.22
Available Options
ROTO FRH Uni Top Swing Window Hinge With Reversible Gearing
The ROTO FRH Uni Top Swing Reversible Gearing Window Hinge is engineered for smooth, controlled operation in modern top-swing and reversible window systems. Designed with durability and performance in mind, this advanced hinge system allows the sash to pivot fully -providing safe outward ventilation and easy inward access for cleaning.
Its reversible gearing design enables installation on both left and right handed applications, reducing the need for multiple stock variants while maintaining consistent, reliable performance across a wide range of window sizes.Ideal for both residential and commercial applications, the hinge also features an integral child restrictor and reverse catch for enhanced safety.

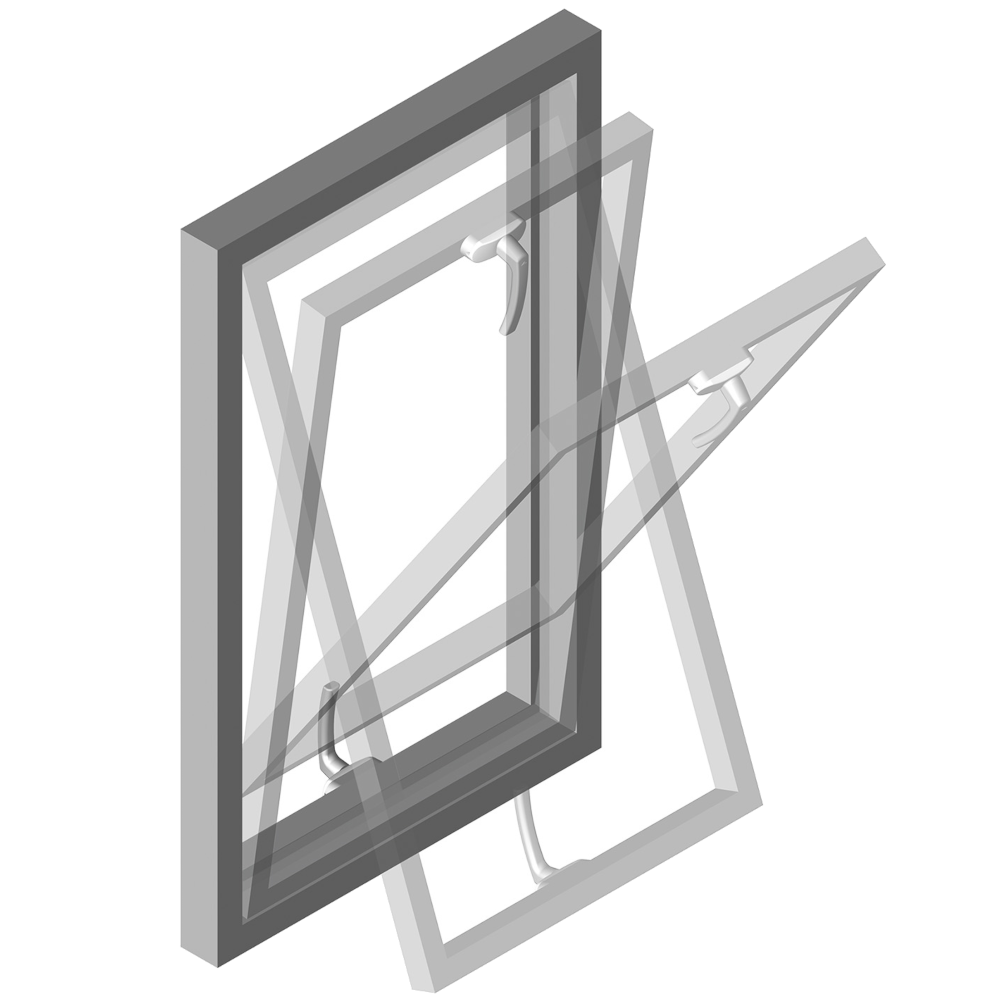

The sash reverses externally, preventing interference with internal blinds or curtains, making it especially suitable for contemporary installations.
Manufactured to meet strict industry standards, this hinge is BS 6375 Part 2:2009 compliant and can achieve PAS24 compliance when used with appropriate additional hardware.
Key Features:
- Top swing reversible gearing system
- Suitable for left and right handed installation
- Smooth, controlled opening and closing
- Integral child restrictor for added safety
- Built-in reversal catch mechanism
- External sash reversal avoids interior obstructions
- Easy cleaning access from inside
- BS 6375 Part 2:2009 compliant
- PAS24 compliant with additional hardware
- Designed for modern uPVC, aluminium and timber window systems
All Modules
Max Window Weight: 60kg
Handed: Reversible

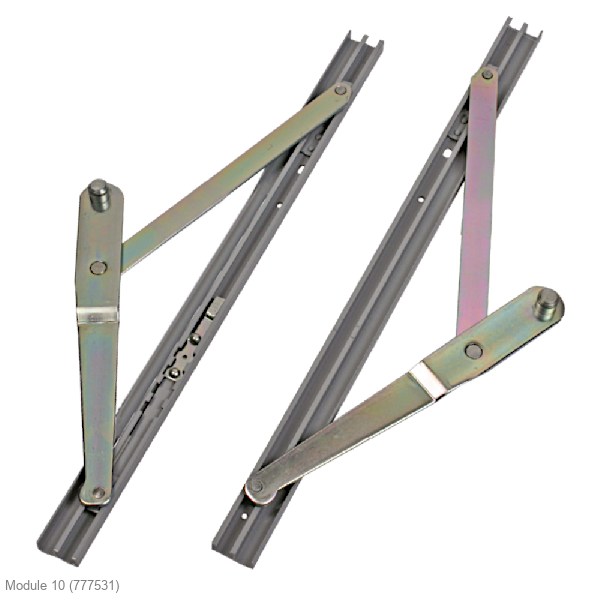

Module 10
Length: 924mm
Max Window Height: 960mm
Module 10.5
Length: 980mm
Max Window Height: 1004mm
Module 11
Length: 1024mm
Max Window Height: 1060mm
Module 11.5
Length: 1080mm
Max Window Height: 1104mm

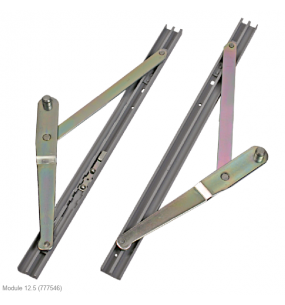

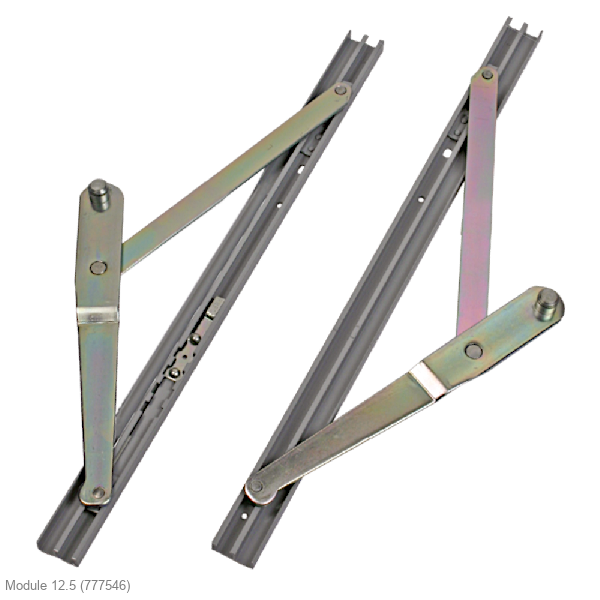

Module 12.5
Length: 1180mm
Max Window Height: 1204mm
Why Buy This Product:
The ROTO FRH Uni hinge offers a smart, space-saving solution for reversible window systems, combining safety, flexibility, and smooth operation in one high-performance design.
| Specifications & Variations | |
| Barcodes | 5056240165509, 5056240165486, 5056240165479, 5056240165462, 5056240165455 |
| Finish | Stainless Steel |
| Handed | Reversible |
| Length | 1.18m, 1.08m, 1.024m, 98cm, 92.4cm |
| Pack Quantity | 1 Pair |
| Standards | BS EN 6375 |
£58.02 Exc. VAT: £48.35
