Sash Window Cord (Wax Cotton)

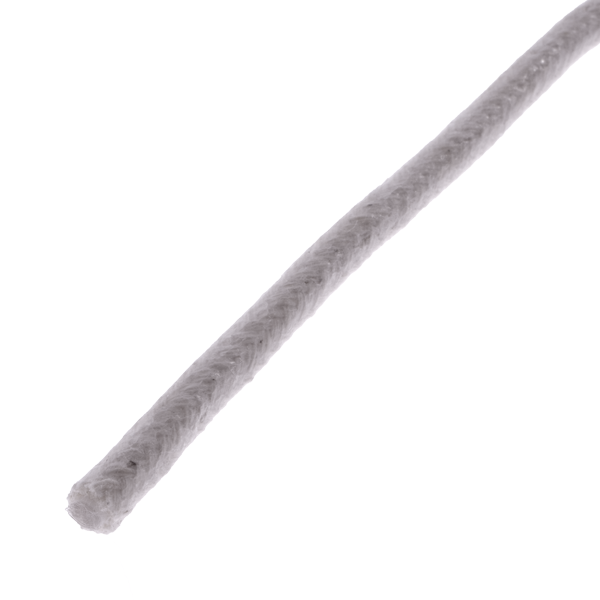

Sash Window Cord (Wax Cotton) - UK manufactured waxed cotton sash cord is the traditional method used for hanging weights. The cotton cord has a polyester core to add extra strength. Supplied in four sizes 5mm, 6mm, 7mm, and 8mm.

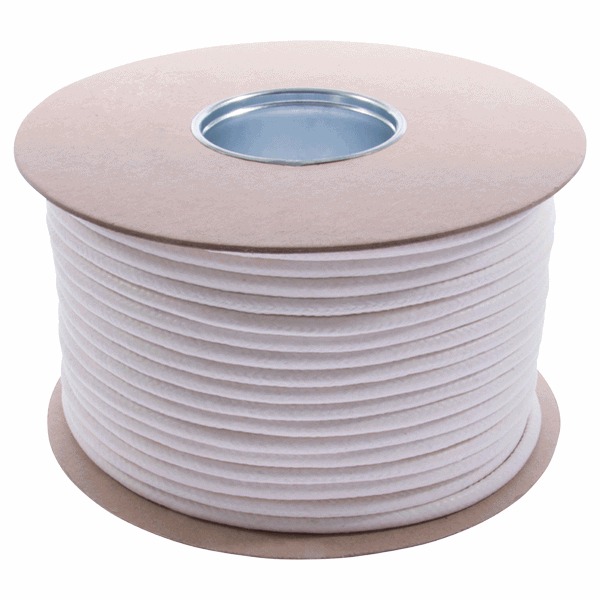

This cord is manufactured in the UK and provides users with confidence in a UK product. Holds a similar weight to the Red fleck cord. The UK Waxed Cotton sash cord has a polyester core for added strength. It is a traditional cord using a natural material, historically used in sash windows. Cotton sustains a lower sash weight than synthetic materials (such as polyester and nylon), however it has superior knot retention, especially in hot conditions. It is supplied in 100m coils, in 4 different sizes: 5mm; 6mm; 7mm and 8mm diameter. The 5mm-diameter cord holds a maximum sash weight of 20Kg; 6mm cord holds 30Kg; 7mm cord holds 50Kg and the 8mm cord holds 75Kg.

Price is per Metre: (Please Note: 'Qty' equals per metre, for example: Qty 1 = 1 metre, Qty 2 = 2 metres, Qty 3 = 3 metres, and so on... Supplied as a continuous coil.)

Specification:

5mm diameter = 20kg/44lb max sash weight

6mm diameter = 30kg/66lb max sash weight

7mm diameter = 50kg/110lb max sash weight

8mm diameter = 75kg/165lbs max sash weight

Additional Information:

• Supplied in 1m increments (will come in a continuous length)
• Traditional UK manufactured cord
• Polyester core for additional strength
• High wax coated
• Supplied in four sizes 5mm, 6mm, 7mm, and 8mm

Installation Instructions:

1. Measure the cord to the correct length using preferred method, e.g. Figure of eight.
2. Unscrew the pocket at the bottom of the side jamb. Cut the sash cord to the required length and feed
   it down through the pulley until it can be pulled out of the bottom of the jamb.
3. Thread the cord through the centre of the lead weight and tie a knot in the end to secure.
4. Feed the cord and lead weight into the side jamb and re-attach the pocket.
5. Fix the sash cord to the routed groove (using a cord cleat) approximately midway down the sash.
6. Repeat this process for the opposite side of the sash, making sure the sash is horizontal.
7. Check that the sash slides freely and adjust as required.


Maintenance and Installation:

As this product is not subject to routine replacement programs, we recommend that the customer check all sash cords regularly to ensure that the product works properly in its application. Replace any damaged components.

DO NOT use any chemical cleaners because they can contain harmful chemicals that may attack the brass and tarnish the surface – Use warm soapy water.
