SI Siegenia Tilt and Turn Drive Gear Window/Door Lock Mechanism

SI Siegenia Tilt and Turn Drive Gear Window/Door Lock Mechanism

  • SI-Siegenia
  • KF-3 SI TBT GB
  • In Stock
  • £34.50

  • Exc. VAT: £28.75

Available Options

- OR -

 NOW DISCONTINUED, LIMITED STOCK AVAILABLE

Please be advised if the specific part is not available we will send you the equivalent gear box replacement part or CLICK HERE......

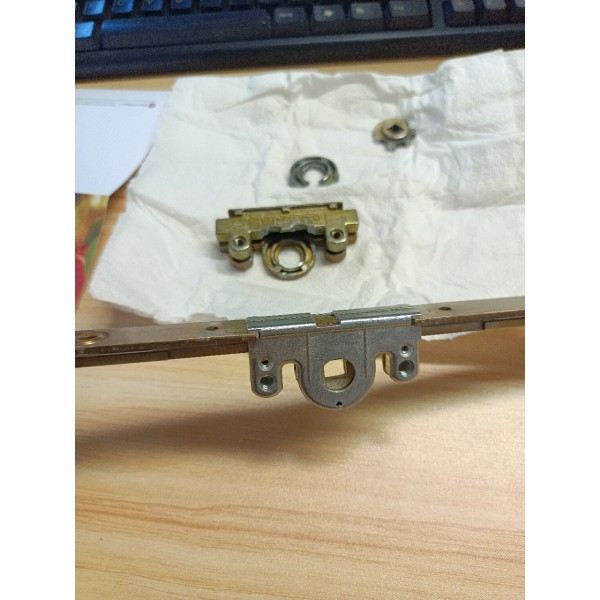

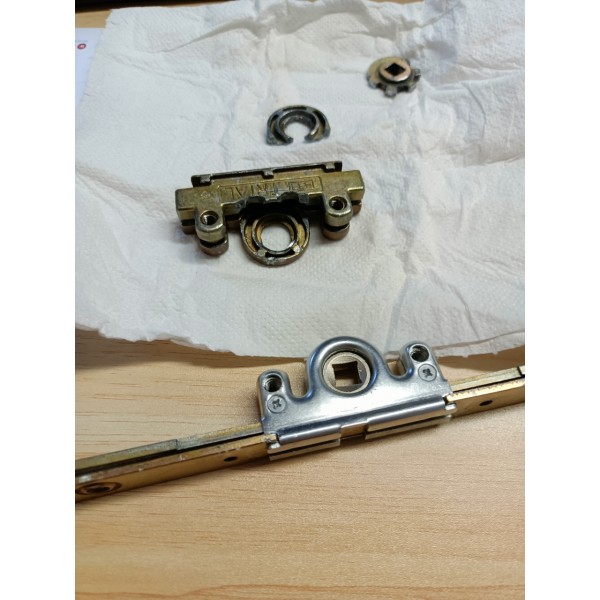

This replacement SI Siegenia Tilt and Turn Drive Gear Window/Door Lock Mechanism replaces the old-style yellow coloured SI Siegena drive gear mechanism on tilt and turn uPVC windows, and tilt and slide doors. It is also an easy replacement part for all types of tilt and turn window/door gearing with a similar drive gear.

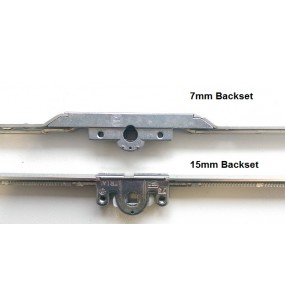

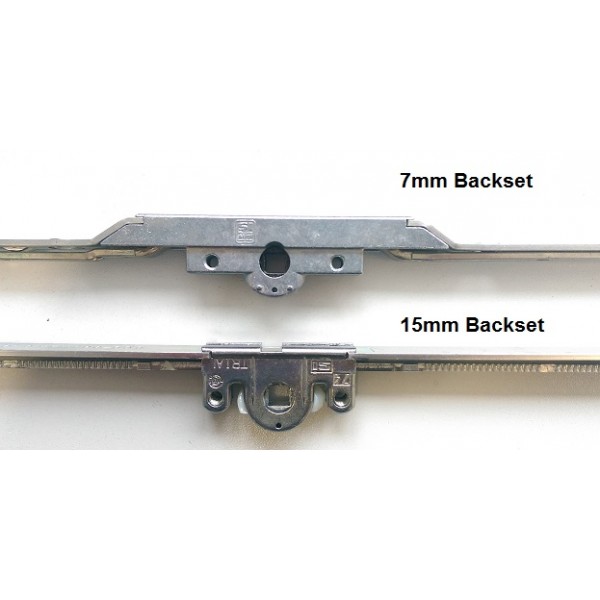

This SI Siegenia tilt and turn gearbox/mechanism is available in a 7mm or 15mm backset and in various different sizes. To identify the correct tilt and turn gearbox size you require, you will need to take note of the markings stamped on the tilt and turn gearbox mechanism you are replacing.

Si SIEGENIA TILT AND TURN GEARBOXMECHANISM REBATE HEIGHT SIZE


GR-0480mm - 600mm
GR-1601mm - 1100mm
GR-1(A)680mm - 1180mm
GR-21000mm - 1460mm
GR-31461mm - 1920mm
GR-4(TL)1880mm - 2380mm
PLEASE NOTE: When ordering, please make sure you select the correct size to suit your requirements: - measure the rebate height of the window/door and choose the drivegear mechanism that suits your measurements. For example, if your rebate height measures 908mm, then choose GR1(A) as this will accomodate your size. **If you are still unsure which drive gear size to order, please email us at: sales@dgpruk.com with the cropped/overall length of the drive gear and we will advise you.**

The SI Siegenia Tilt and Turn Drive Gear Window/Door Lock Mechanism can also be purchased as part of the full tilt and turn gearing kit. Also, if the problem with your uPVC tilt and turn window/door is caused by more than just the window/door lock mechanism itself, or failure of any of the other components that make up this tilt and turn kit, then we sell other individual parts of this kit also.

**Click here to see the listing for the 'Si Siegenia Tilt Switch Barrier'**

**Click here to see the listing for the 'Si Siegenia Tilt and Turn Drive Gear Backbolt (Part No. BB/6)'**

**Click here to see the listing for the 'Si Siegenia Tilt and Turn Drive Gear Bottom Corner VSU (Part No. BC/3)'**

**Click here to see the listing for the 'Si Siegenia Tilt and Turn Drive Gear Bottom Extension Piece (Part No. BE/4)'**

**Click here to see the listing for the 'Si Siegenia Tilt and Turn Drive Gear Hinge Pack (Bag)'**

**Click here to see the listing for the 'SI Siegenia Tilt and Turn Drive Gear Scissor Stay/Top Tilt Arm (Part No. SS/5)'**

**Click here to see the listing for the 'Si Siegenia Tilt and Turn Drive Gear Small Top Corner VSO (Part No. TC/2)'**

**Click here to see the listing for the 'Si Siegenia Tilt and Turn Drive Gear Top Corner (Part No. TC/1)'**

**Click here to see the listing for the 'SI Siegenia Tilt and Turn Fixed Height Window Lock'**

Various different types/makes of tilt and turn gearing (full kits and parts) are also available to order - please email us at: sales@dgpruk.com should you wish to enquire further, or you have any queries regarding this Si Siegenia Tilt and Turn Kit.

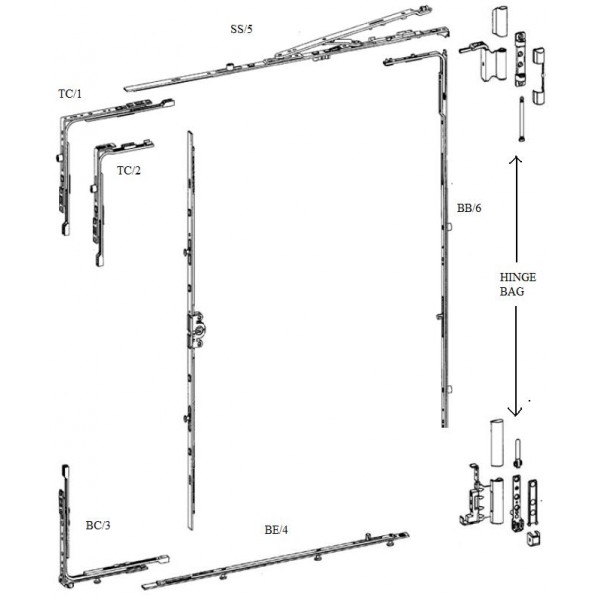

The SI Siegenia tilt and turn window kit comprises of the SI Siegenia drive gear mechanism, which the tilt and turn handle operates. The main part of the SI Siegenia tilt and turn kit is the gearbox/mechanism which operates all the other components of the SI Siegenia tilt and turn kit, such as the top and bottom drive corners. The top corner engages in a locking keep (also known as a striker) at the top/side of the window, and the bottom corner engages in the bottom/side keep as well as the tilt keep/stricker at the bottom of the window. The drive gear mechanism also operates the scissor stay mechanism, which in turn operates the tilt action and the backbolt mechanism, which locks into the keep/striker on the hinge side of the tilt and turn window. The SI Siegenia tilt and turn bottom extension piece is also required when the tilt and turn is over 1000mm in width.
