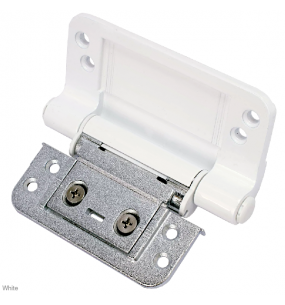

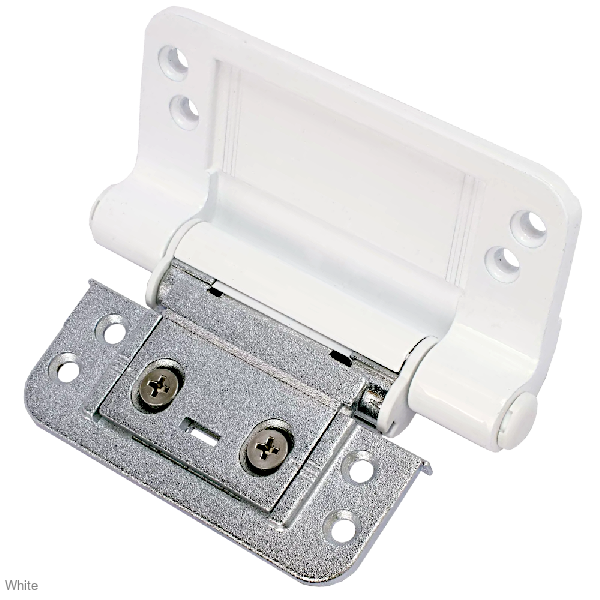

TROJAN 3D Composite Door 0705 Butt Hinge
- Trojan
- TROJA_0019
- In Stock
-
£14.80
- Exc. VAT: £12.33
Available Options
The Trojan 3D composite hinge is a fully adjustable door butt hinge designed for composite doors, offering up to 4mm vertical, 3mm lateral, and 1.75mm compression adjustments to ensure precise alignment and even load distribution. Engineered to support door leaf weights up to 100kg with three hinges installed, it features a rebated fitment for a secure and unobtrusive design. Tested to 100,000 cycles in accordance with EN 1191 standards, this hinge guarantees long-lasting performance and durability.
TROJAN 3D Composite Door 0705 Butt Hinge
Features
- Supplied pre-assembled
- Carries 100Kg weight per 3 hinges
- Max door size 1000mm (W) x 2200mm (H)
- All finishes UV rated
- Fits in to rebate
- Easily adjustable in all planes
Categories
- Architectural Hardware
- Door
- Accessory
- Hinges
- Multi Point Locks
Our TROJAN 3D Composite Door 0705 Butt Hinge from Trojan is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Barcodes | 5056240155807, 5056240155791, 5056240155784, 5056240155777, 5056240155760, 5056240155753, 5056240155746, 5056240155739 |
| Finish | White, Satin Silver, Oak, Gold, Chrome, Brown, Black, Anthracite Grey |
| Handed | Non Handed |
| Max Door Height | 2200mm (With 3 hinges fitted) |
| Max Door Weight | 100Kg (With 3 hinges fitted) |
| Max Door Width | 1000mm (With 3 hinges fitted) |
| Pack Quantity | 1 |
| Product References | Adjustment: Lateral +/-3mm; Vertical +/-4mm; Compression +/-1.75mm |
| Standards | BS EN 1670:2007 |
£4.79 Exc. VAT: £3.99
