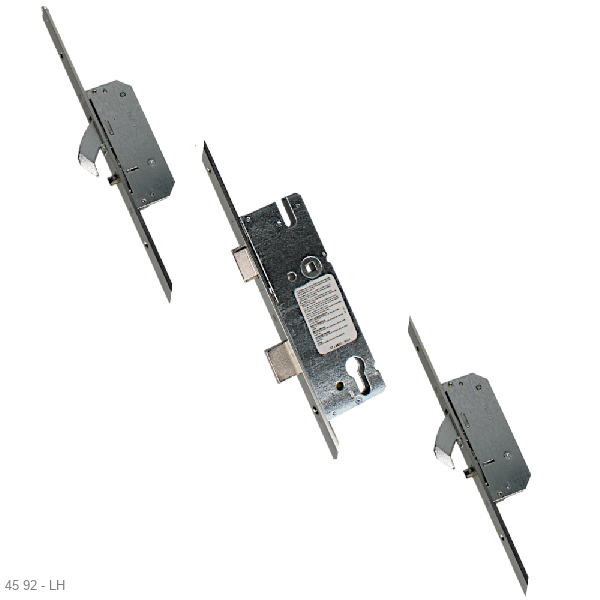

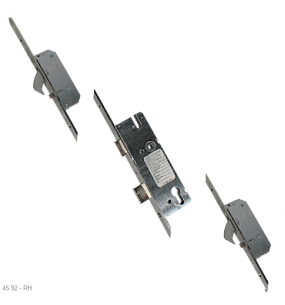

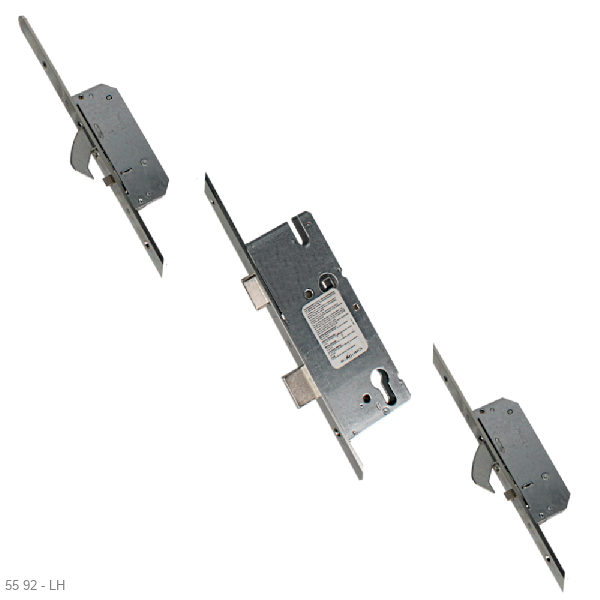

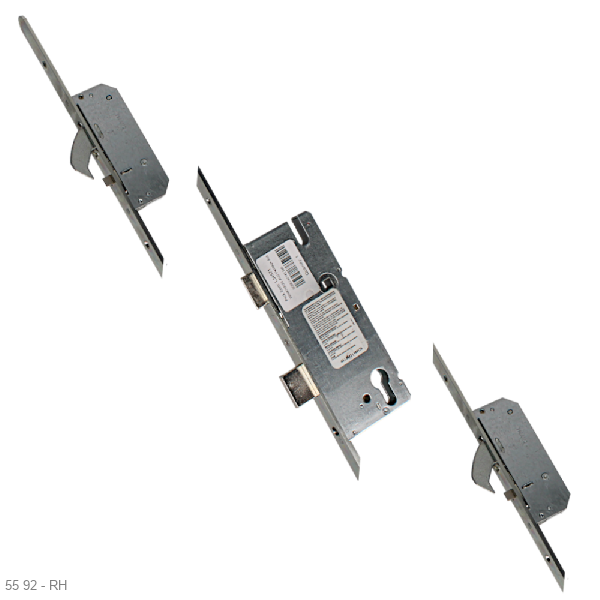

WINKHAUS AV2 Heritage Auto Locking Lever Operated Latch & Deadbolt 20mm Radius - 2 Hook
- Winkhaus
- WINKH_0038
- In Stock
-
£262.40
- Exc. VAT: £218.67
Available Options
The Heritage automatic locking AV2 multipoint lock has a 20mm wide radius faceplate and incorporates 2 hooks, complimenting both traditional period and contemporary doors. It has a protective coating which meets the standards of EN1670:2007 Grade 4, using a low operating force and a high level of weather resistance, and the gearbox has been performance tested to 100,000 cycles.
The Heritage range has been designed to harmonise with the Winkhaus XR6-51 Kitemarke profile cylinder(KM531333) and in combination with a security escutcheon meets PAS24 and the highest TS007 3 star security requirements. Additionally, the range is also Secured by Design (Police approved specification).
WINKHAUS AV2 Heritage Auto Locking Lever Operated Latch & Deadbolt 20mm Radius - 2 Hook
Features
- 20mm wide radius faceplate
- Auto-locking
- Secured by Design (SBD licence held by Winkhaus UK Ltd)
- Euro profile lock case
- Latch & deadbolt
- High performance gearbox
Categories
- Architectural Hardware
- Door
- Full Units
- Winkhaus
- Multi Point Locks
Our WINKHAUS AV2 Heritage Auto Locking Lever Operated Latch & Deadbolt 20mm Radius - 2 Hook from Winkhaus is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 45mm, 55mm |
| Barcodes | 5055120759517, 5055120759500, 5056240141336, 5056240141329 |
| Body Height | 1612mm |
| Case Height | 185mm |
| Case Width | 50mm, 60mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 20mm Radius |
| Handed | Right Hand, Left Hand |
| Length | 1.77m |
| Locking Point Dead Bolt | 2 |
| Pack Quantity | 1 |
| Product References | L24357, L24356, L34571, L34570 |
| Spindle | Through |
| Standards | Secured By Design |
