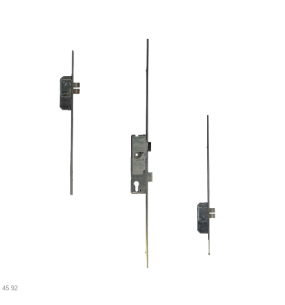

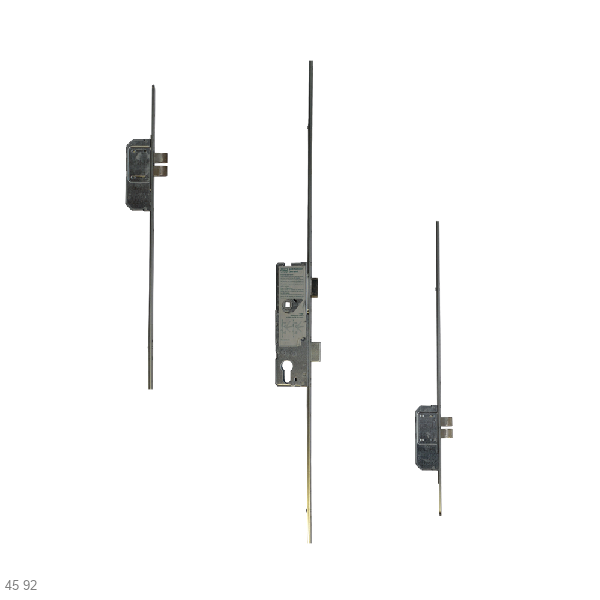

WINKHAUS Thunderbolt Single Spindle Lever Operated Latch & Deadbolt 20mm Radius 4 Dead Bolt
- Winkhaus
- WINKH_0099
- In Stock
-
£124.80
- Exc. VAT: £104.00
Available Options
The WINKHAUS Thunderbolt lever operated latch & deadbolt is a full multipoint lock unit with 4 dead bolts. This version is single spindle and non handed. It features a Euro profile centre case with a 20mm radius faceplate and 8mm spindle. The deadbolts are each 20mm long and 8.5mm thick, with a 20mm throw, ensuring very high security and peace of mind. The high performance sprung gearbox has been tested to 100,000 cycles, offering the lowest possible operating forces and preventing handle 'droop'. The unit can be locked by using the lift lever to engage the locking mechanisms, after which a full turn of the full cylinder locks it up. One full turn of the key followed by a push down on the lever unlocks the unit. It is Secured by Design and complies to PAS23/24 and EN 14351-1:2006.
WINKHAUS Thunderbolt Single Spindle Lever Operated Latch & Deadbolt 20mm Radius 4 Dead Bolt
Features
- Latch & deadbolt
- Euro profile lock case
- 20mm throw twin deadbolts
- Single spindle
- Complies to PAS23 24 & EN14351-1 2006
- Secured by Design (SBD licence held by Winkhaus UK Ltd)
Categories
- Architectural Hardware
- Door
- Full Units
- Winkhaus
- Multi Point Locks
Our WINKHAUS Thunderbolt Single Spindle Lever Operated Latch & Deadbolt 20mm Radius 4 Dead Bolt from Winkhaus is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 45mm |
| Barcodes | 5056240137056 |
| Case Depth | 63mm |
| Case Height | 186mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 20mm |
| Handed | Reversible |
| Length | 1.77m |
| Locking Point Dead Bolt | 4 |
| Pack Quantity | 1 |
| Product References | L34045 |
| Spindle | Single |
| Standards | Secured By Design |
