WINKHAUS Trulock+ Pyro Lever Operated Latch & Deadbolt Split Spindle 20mm Radius - 2 Hook
- Winkhaus
- WINKH_0054
- In Stock
-
£111.30
- Exc. VAT: £92.75
Available Options

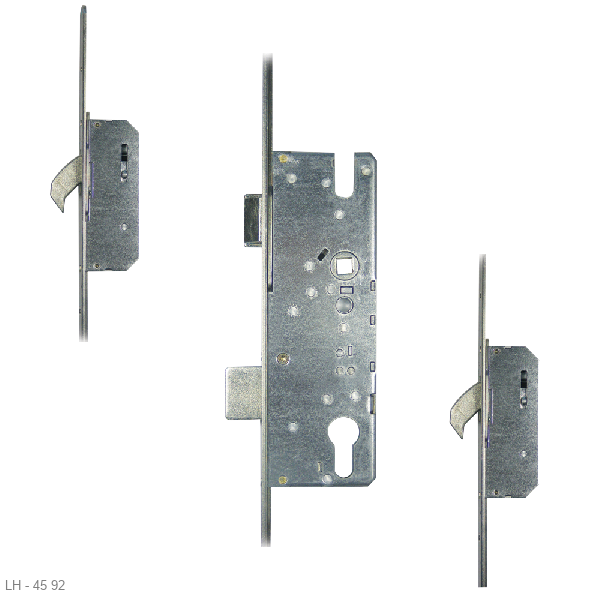

Lever operated latch & deadbolt multipoint lock system by Winkhaus with 92mm centres, 20mm wide radius faceplate, a split spindle and 2 hooks. This handed unit is available in both left and right hand varieties and is suitable for Fire Door FD30 applications.
WINKHAUS Trulock+ Pyro Lever Operated Latch & Deadbolt Split Spindle 20mm Radius - 2 Hook
Features
- 20mm radius faceplate
- Euro profile lock case
- Latch & deadbolt
- Split spindle
Categories
- Architectural Hardware
- Door
- Full Units
- Winkhaus
- Multi Point Locks
Our WINKHAUS Trulock+ Pyro Lever Operated Latch & Deadbolt Split Spindle 20mm Radius - 2 Hook from Winkhaus is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 45mm |
| Barcodes | 5055120781709, 5055120781693 |
| Case Height | 185mm |
| Case Width | 60mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 20mm Radius |

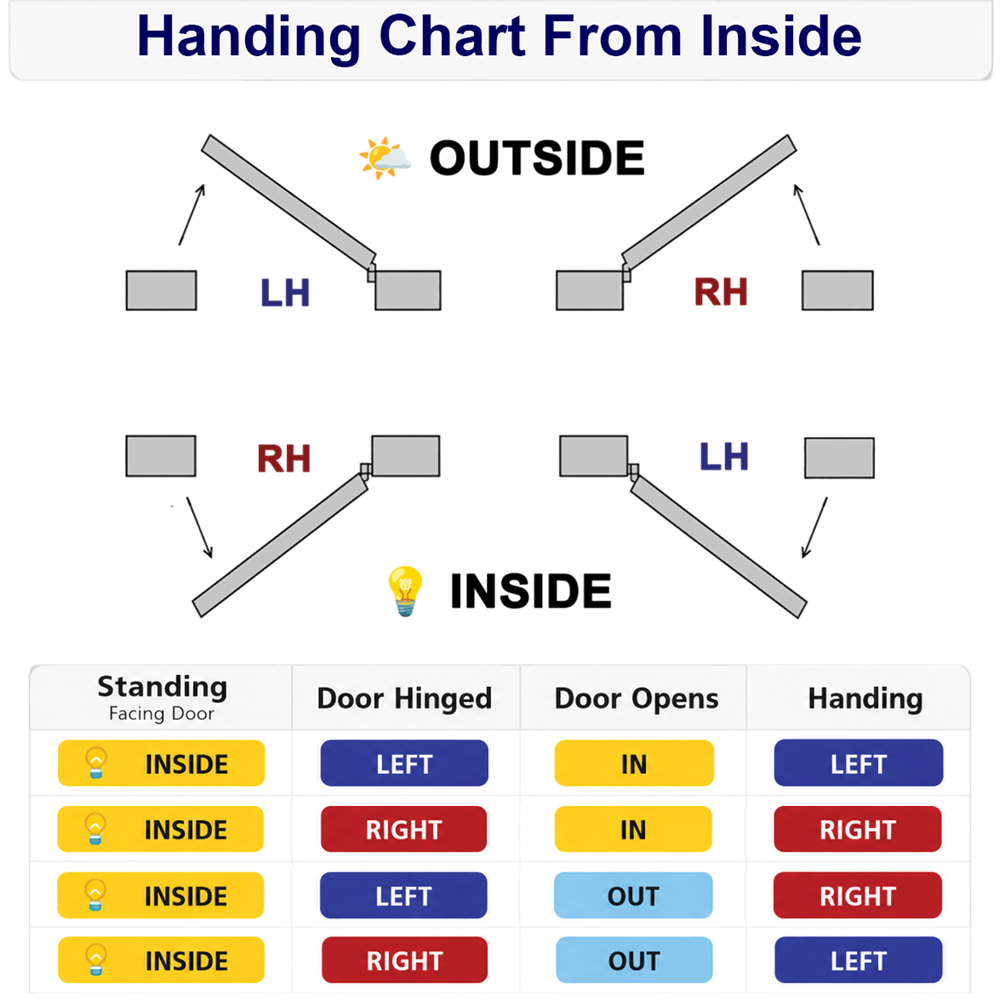

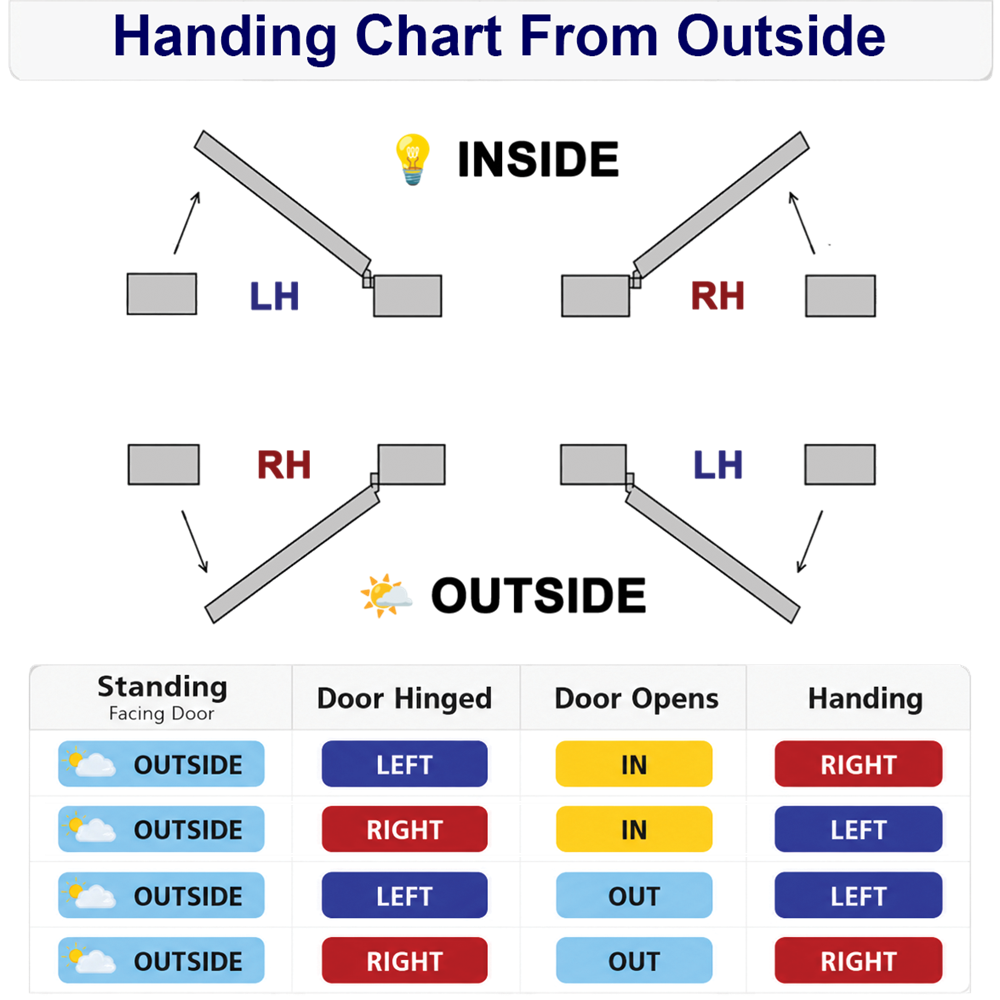

| Handed | Right Hand, Left Hand |
| Length | 1.77m |
| Locking Point Hooks | 2 |
| Product References | L26870, L26869 |
| Spindle | Split |
