WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA)
- Winkhaus
- WINKH_0096
- In Stock
-
£137.94
- Exc. VAT: £114.95
Available Options

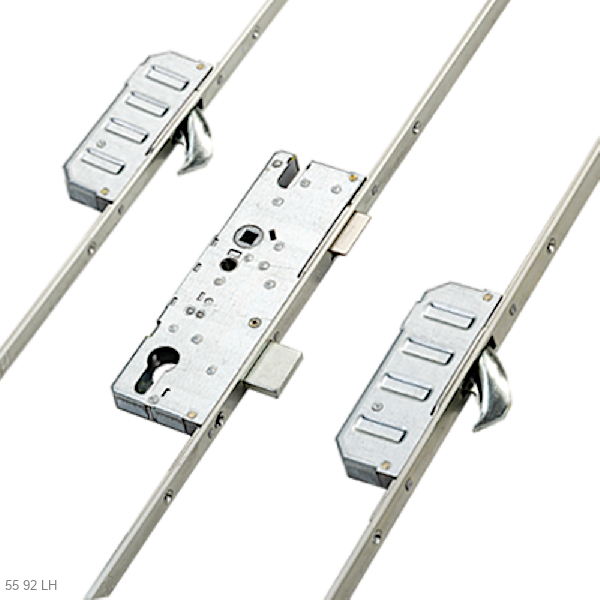

This keywind operated Trulock STV-F 2070 M2 latch & deadbolt multipoint lock system by Winkhaus features a 20mm radius faceplate with 92mm centres and 2 hooks. It is available handed as left or right hand in a choice of backset sizes and is suitable for use on composite and timber doors.
WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA)
Features
- Suitable for use on composite and timber doors
- Choice of backset sizes and handing
- 25mm throw tensile steel hooks
- Latch & deadbolt centre case
- Low friction hook thrust plates for smooth operation
- 20mm radius faceplate
Categories
- Architectural Hardware
- Door
- Full Units
- Winkhaus
- Multi Point Locks
Our WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA) from Winkhaus is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us. In the event of a return, a 30% restocking charge applies to these locks.
* Information above is accurate at the time of entry and may be subject to change at any time.
| Specifications & Variations | |
| Backset | 55mm, 45mm |
| Barcodes | 5056240129297, 5056240129280, 5056240128597, 5056240128580 |
| Case Height | 186mm |
| Case Width | 73mm, 63mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 20mm Radius |

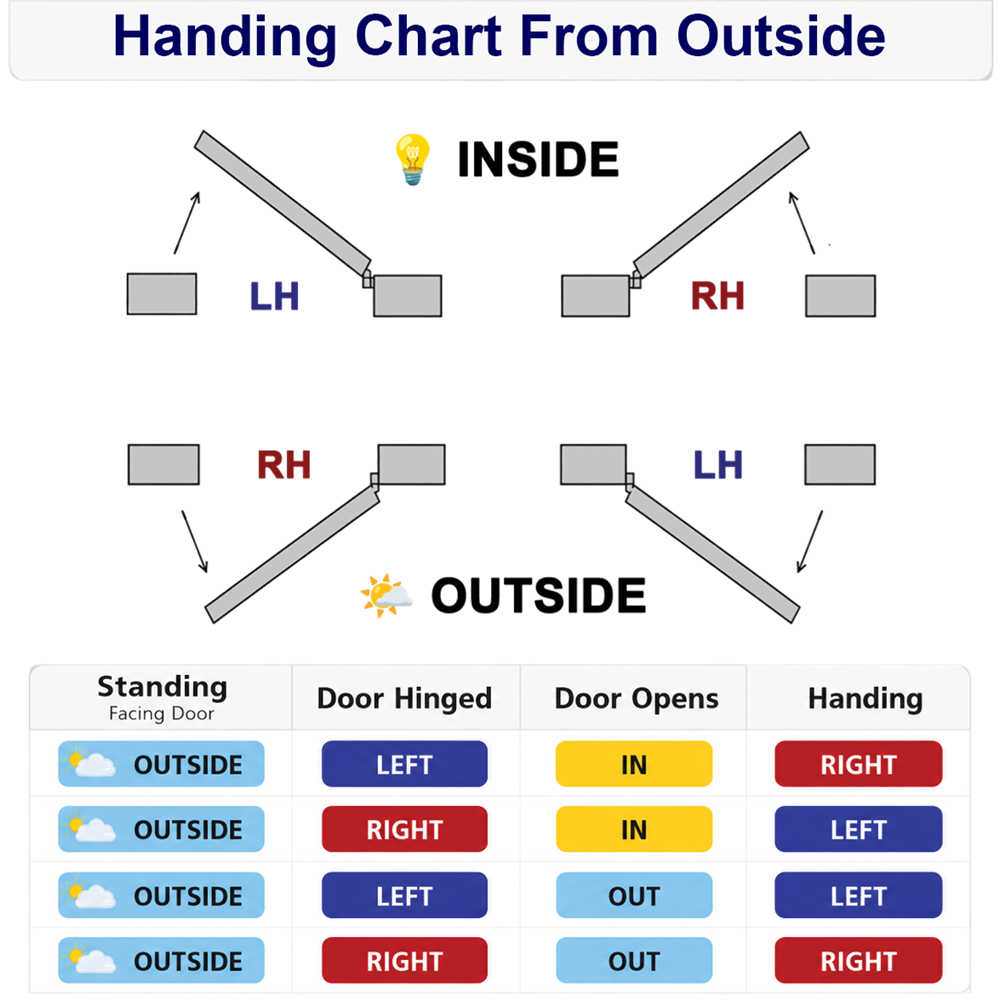

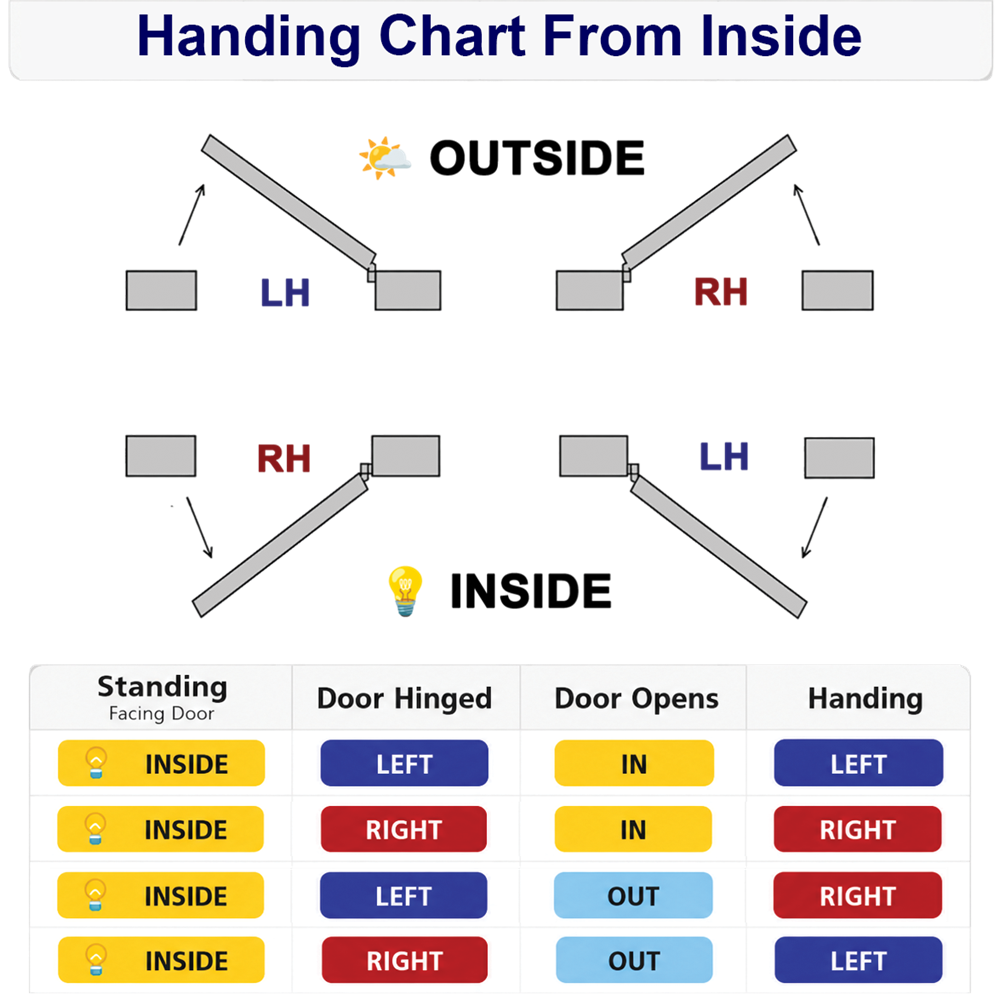

| Handed | Left Hand, Right Hand |
| Length | 1.77m |
| Locking Point Hooks | 2 |
| Manufacturer Reference | 2946051, 2946043, 4939366, 4939365 |
| Pack Quantity | 1 |
| Standards | Secured By Design |
