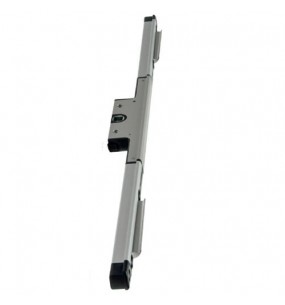

Yale Rapide - Security Window Locking System
- SI-Siegenia
- YALE RAP 1709
- In Stock
-
£21.54
- Exc. VAT: £17.95
Available Options

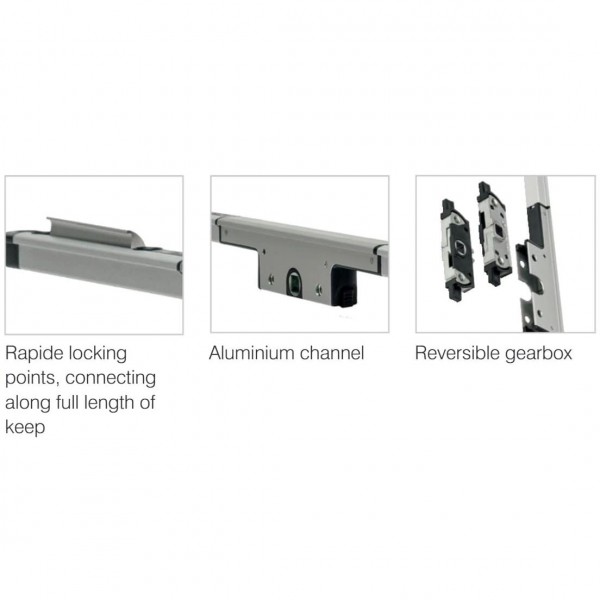

The Yale Rapide blade window lock offers greater lock engagement for additional security as it connects along the full length of the keep.
The aluminium channel uses the full depth of the eurogroove to enhance the strength of the window - some systems can reach PAS24 without the need for additional re-enforcement.
Specification
- 30mm and 60mm keeps with night vent position
- 20mm and 22mm backsets
- Suitable for sash sizes from 220mm to 1629mm
- Reliability tested to 30,000 cycles
- Tested to 240 hour salt spray
- Suits all profile systems
- Easy to fit
- Strikers available on request

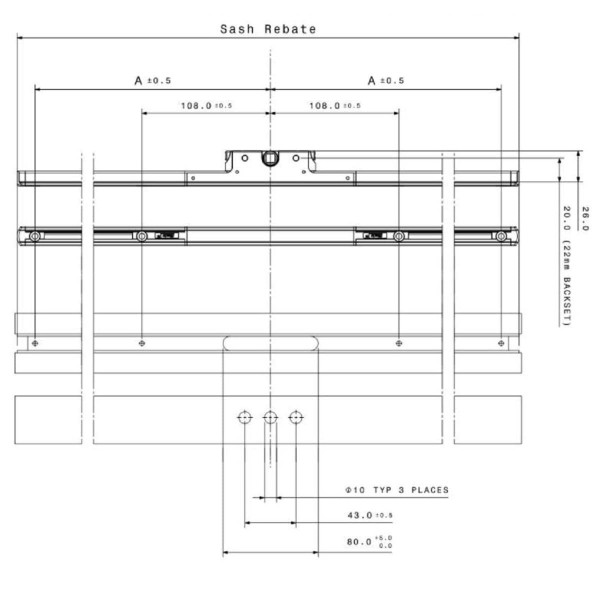

Size Chart - Dimension A is not the total length
| Size Dimension A (See Image on how to measure) | Sash Rebate Size Range (mm) |
| 185 | 400-519 |
| 245 | 520-639 |
| 305 | 640-759 |
| 365 | 760-879 |
| 425 | 880-999 |
| 4851 | 1000-1119 |
| 545 | 1120-1239 |
| 605 | 1240-1359 |
| 665 | 1360-1479 |
| 725 | 1480-1600 |
£2.22 Exc. VAT: £1.85
Disclaimer
All images are for reference purposes only and can show multiple dimensions of a single product so you can see the product from different angles. This does not usually mean the amount shown in the image is the amount you purchase. Where multiple items are shown please check the description as only one is usually supplied unless otherwise stated.
