Aluminium and Wooden Window / Door Restrictor Arm
- Avocet
- DOOR RESTRICTOR AVAW 1709
- In Stock
-
£5.82
- Exc. VAT: £4.85
Aluminium and Wooden Window/Door Restrictor Arm – Non-Eurogroove Design
Window & Door Restrictor Arm – Limit the opening of aluminium, wooden, or uPVC doors and windows with this versatile, non-Eurogroove restrictor. The restrictor arm allows for controlled window or door openings, with a pre-set position or a maximum angle of 90 degrees.
Key Features:
- Simple Installation:
- Easily fit the restrictor and bracket to the frame.
- The friction screws in the slider help keep doors or windows secure, even in mild wind conditions.
- Friction block easily adjusted with an Allen key or screwdriver.
- Easily fit the restrictor and bracket to the frame.

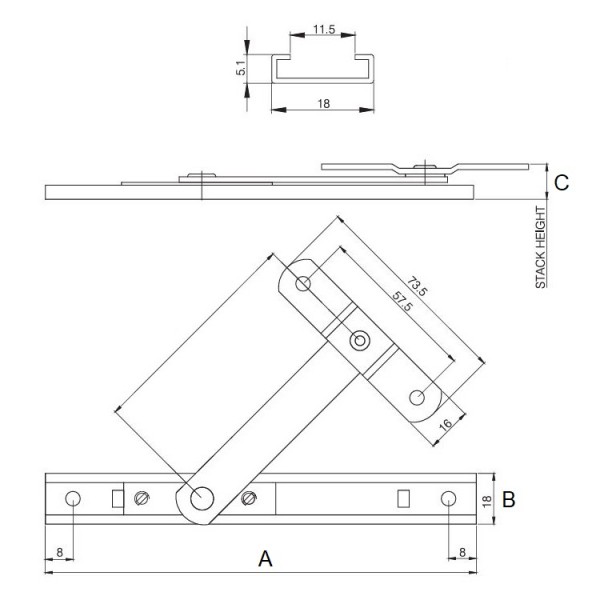

- Dimensions:
- Length: 265mm (A)
- Width: 18mm (B)
- Stack height: 13mm (C)
- Compatibility:
- Suitable for uPVC, aluminium, and wooden doors and windows.
- Provides adjustable friction for windows
- Completely concealed when window is closed
- No internal obstruction when opened
Technical Information:
- Performance: Tested for durability up to 100,000 operations.
- Corrosion Resistance: Complies with BS EN 1670:1998 Grade 4 standards for long-lasting corrosion resistance.
Material Specifications:
- Track: Aluminium extruded (SLDR), Stainless steel 430 (RS10).
- Slider: Nylon 66 for enhanced durability.
For optimal performance, install 70mm from the frame edge (refer to additional product images for guidance).

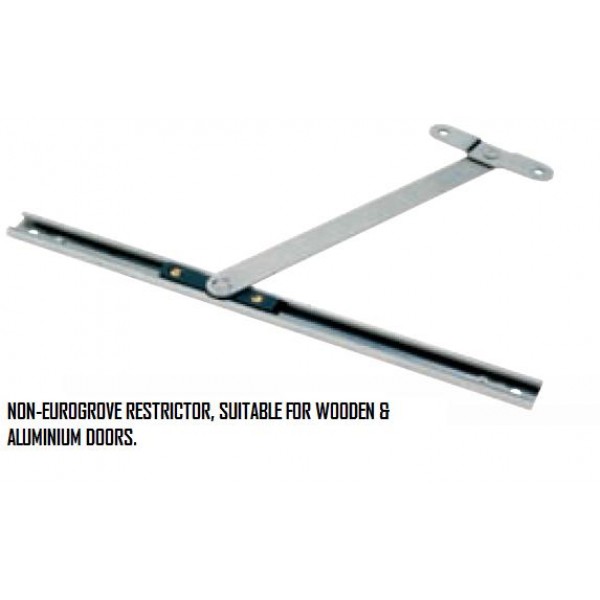

NON-EUROGROOVE DOOR & WINDOW RESTRICTOR
For large top-hung windows, friction arm can be used as an extra support by fitting it below the existing friction hinge.
