Siegenia TITAN AF Concealed Tilt & Turn Gearing
- SI-Siegenia
- SI AF C 1709
- In Stock
-
£150.00
- Exc. VAT: £125.00
Available Options
Siegenia TITAN AF axxent 24+ Tilt & Turn Gearing
***NEW SYSTEM***
- Concealed pivot hinges
- High weight load capacity of 150kg
- Click-on coupling to speed up fabrication
With an unobtrusive design and extremely low frame clearance, the TITAN AF axxent 24+ gearing can be used with narrow frame profiles in order to make maximum use of daylight.
The TITAN AF axxent 24+ features an innovative hinge side with a high load-bearing capacity which means it can be used with sash weights of up to 150kg without the need of any additional parts.
As part of the same product family as the TITAN AF Face Fix solution, the axxent 24+ concealed variant is also suitable for PVCu, aluminium, timber-aluminium and timber profile systems. The TITAN range is renowned for being flexible to suit most manufacturing processes while providing the standard reliable functionality required from a tilt and turn system.
Assembly is quick and easy due to the innovative click-on coupling feature, requiring only one screw per coupling point. Optimised screw guide claws, precision coupling teeth and joint chamfers mean that connecting components is secure and straightforward. A high degree of pre-assembly also helps to speed up fabrication time.
We have also created a custom TILT AND TURN GEARING ORDER FORM so you can fill this is an email it to us for advice (email address on the form).
Technical Information:
- Espagnolette backset: 7 or 15mm
- Faceplate width: 16mm eurogroove for PVCu or aluminium
- 24mm rebate width for timber or timber-aluminium
- Sash rebate width: 420-1650mm
- Sash rebate height: 460-3000mm
- Max sash weight: 130/150kg
If profile name is not provided the universal kit will be supplied. All custom kits are special order items, and as per our Terms of Sale non-refundable.
When ordering this Full Kit, please confirm that the overall width and height provided is of the SASH size (the opening part of the window) as image below.

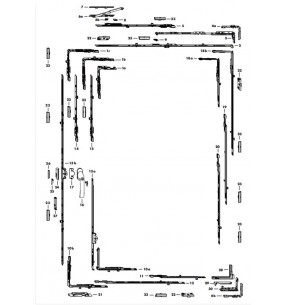

PLEASE NOTE: Individual parts of this Siegenia TITAN AF Concealed Tilt & Turn Gearing (Full Kit) can also be purchased.
