SI Siegenia Tilt and Slide Patio Door Track Kit (PSK Portal 160)

SI Siegenia Tilt and Slide Patio Door Track Kit (PSK Portal 160)

  • SI-Siegenia
  • SI SIEGENIA TP 160 1709
  • In Stock
  • £207.00

  • Exc. VAT: £172.50

Available Options

- OR -

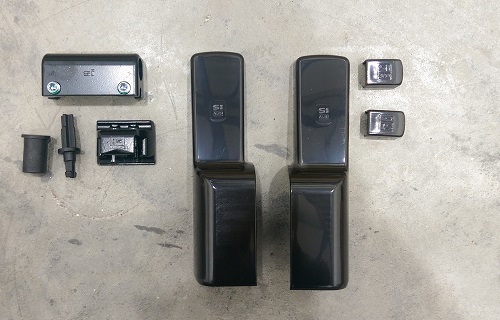

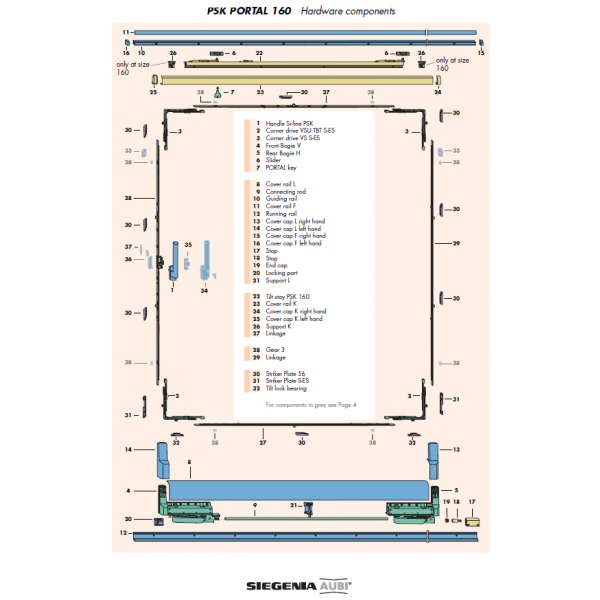

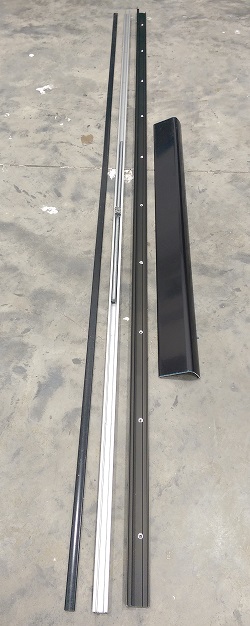

The SI Siegenia Tilt and Slide Patio Door Track Kit (PSK Portal 160) is for use with uPVC patio doors, timber patio doors, and aluminium patio doors. It consists of part numbers: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, and 20 (as shown on the image below). The SI Siegenia Tilt and Slide Patio Door Track Kit (PSK Portal 160) can also be purchased as part of the SI Siegenia Tilt and Slide Patio Door Full Kit (PSK Portal 160).

**click here to view the listing for the 'SI Siegenia Tilt and Slide Patio Door Full Kit (PSK Portal 160)'**

PLEASE NOTE: This listing is for the SI Siegenia Tilt and Slide Patio Door Track Kit (PSK Portal 160) ONLY

TRACK KIT SIZE CALCULATORSash Rebate Width:Outer Frame Size:
SIZE 1 (Gr. 87/200)670mm - 870mm0mm - 2000mm
SIZE 2 (Gr. 107/240)871mm - 1070mm2001mm - 2400mm
SIZE 3 (Gr. 130/286)1071mm - 1300mm2401mm - 2860mm
SIZE 4 (Gr. 160/346)

1301mm - 1600mm

2861mm - 3460mm

Available cover colours:
  • White
  • Brown


PSK 160 Tilt and Slide Patio hardware is manufactured using TS-Look Chromium VI free solutions, providing enhanced corrosion resistance. The hinges and bogie wheels are designed to fit modern chamfered over-rebates.

  • Suitable for uPVC, timber, and aluminium profiles
  • Suitable for all profiles, slim and chamfered
  • All components supplied in TS-look silver finish
  • No jigs required for bogie wheels
  • Roller cams on corner drives as standard
  • Increased clearance between sash and frame, therefore it is not necessary to use “slim” or “low” external handles
  • Safe, simple height adjustment of +4mm/-2m
  • 160kg load capacity
Fitting instructions in form of a PDF will be included.

  • Maximum Sash Weight (kg) 160
  • Sash Rebate Width (mm) 670 - 1600
  • Sash Rebate Height (mm) 840 - 2360

**SPECIAL ORDER ITEM, 25% RE-STOCKING CHARGE APPLIED IF RETURNED**
