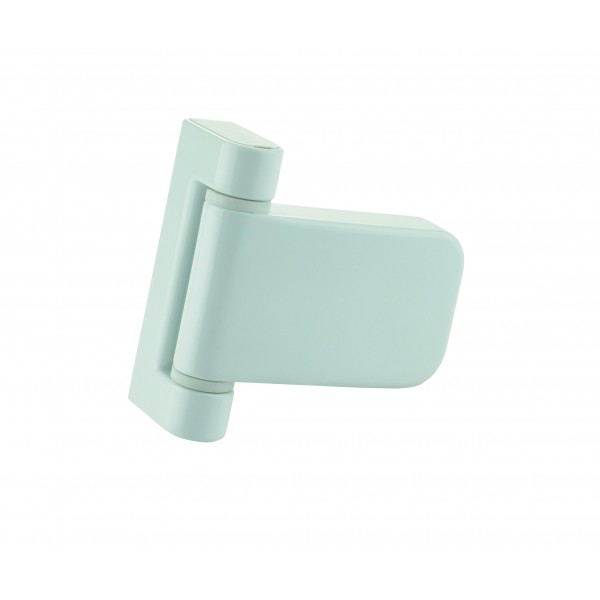

ProSecure Door Hinge

The high security ProSecure Door Hinge is the only door hinge supplied in one piece, ready-to-fit straight from the box. Faster to fit than any other door hinge.

TWO INSTALLATION OPTIONS:

• Mila’s Glider technology allows the whole hinge to slide directly onto the frame.
• Or, for low reveals, simply remove the steel pin and front-fit the hinge.
• THIS HINGE IS REVERSABLE FOR LEFT OR RIGHT FITTING
  See video here - https://www.youtube.com/watch?v=1zeW16lXJi0

• Minimal preparation is required - only two holes need to be pre-drilled on the frame.
• The hinge lid is held cleverly captive, pivoting open and closed. Lift the lid to screw the concealed fixing datum directly to the sash in seconds.

• +/- 5mm lateral adjustment can be achieved from the front of the hinge, with 90° rotation of a 4mm Allen key, which can then ‘locked’ into place to prevent adjustment creep. Vertical (+5mm) and compression (+/-1mm) adjustment can also be achieved from the top of the hinge for full 3D refinement.

• The hinge is supplied with optional loose fixings lugs enabling you to choose where to fit them depending on what profile you are using for optimum installation. Static-cling TechTape protects the hinge lid during fabrication and installation. A removable rubber tongue ensures that the hinge lid remains open until installation is complete.

• Polished Gold
• Polished Chrome
• Smooth Satin Chrome
• Smokey Chrome (only available in box qty of 12)

• Light Oak
• Brown
• Black
• White
• Chartwell Green (only available in box qty of 12)

• Anthracite Grey
• Silk Grey (only available in box qty of 12)

• Cement Grey (only available in box qty of 12)

• Cream (only available in box qty of 12)


• 16mm
• 17mm
• 18mm
• 19mm
• 20mm
• 21mm
• 22mm
• 23mm
• 24mm

• The Only Hinge Supplied Fully Assembled in One Piece - ready-to-fit straight from the box.
• 2 Installation Options - slide-on or front-fit - the choice is yours.
• Glider Technology  - fix the Glider to the frame, then simply slide the whole hinge onto it - fast, simple.
• Front-Fit - the hinge can be fitted from the front too - simply remove the steel hinge pin. Perfect for low reveals.
• Virtually Jigless - only 2 holes to pre-drill.
• Faster Than Any Other Hinge - proven to be faster to fit than other security hinges in time trials under test conditions.
• Captive HInge Lid - pivots open and closed for fast, easy installation.
• Patented Adjustment - our patented front adjustment method is fast not fiddly! Rotate your Allen key 90° to achieve +/-5mm lateral adjustment.
• Rubber Tongue - ensures the hinge lid remains open until installation is complete.

• The hinge has been independently tested to the enhanced security requirements of PAS 024:2012, extreme corrosion resistance tested to BSEN1670:2007 grade 5 and tested to BSEN1935: 2002 grade 12 - achieving 200,000 cycles under 100kg load for extreme operational reliability.
• Two hinges will easily carry a 100kg sash.
• The hinge is a Police Preferred Specification product and is Secured by Design accredited.

• PAS 24:2012 (enhanced security performance)
• BSEN 1670:2007 Grade 5 (exceptionally high corrosion resistance)
• BSEN 1935:2002 Grade 12 (extreme durability achieving 200,000 cycles under load)
• Secured by Design - Police Preferred Specification
